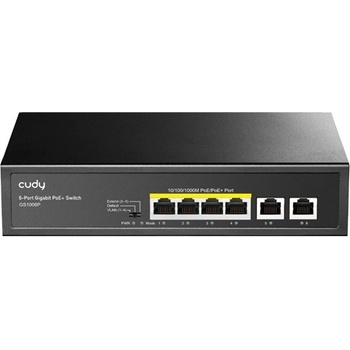

Cudy GS1006P



Cudy GS1006P





A rack-mounted 6-GbE PoE switch with a 65W power supply and a silent cooling system.



Specs:< /p>Mechanical Dimension 200×118×44 mmCasing Material MetalInstallation

• Desktop
• Rackmount via Brackets

Interfaces Physical Buttons VLAN/Default/Extend DIP SwitchGigabit RJ45 Ports 2Gigabit RJ45 PoE Ports 4Max Power on a Single PoE Port 30WPoE Port Notes PoE ports support 802.3at/af standards. Extend Mode Ports #3~#4VLAN Mode Ports #1~#4LED

• Power
• DIP Mode (SW)
• Link/ACT of Each Ethernet Port

Power Input AC InletPerformance Copper Speed and Distance

• Cat. 3 or higher cable: 100 meters at 10 Mbps
• Cat. 5 or higher cable: 100 meters at 100 Mbps
• Cat. 5e or higher cable: 100 meters at Gigabit
• Cat. 5e or higher cable: 250 meters at 10 Mbps

Copper Speed and Distance Note 250-meter transmission is only available on the Extend Mode ports. MAC Address Table 2048Max Switching Capacity 12 GbpsMax Forwarding Rate 8.928 MppsJumbo Frame 9 KBPacket Buffer 1 MbitPower Power Methods ACAC 100-240V 50/60HzMax Power Consumption 65WMax Power Excluding PoE 5WSwitching 802.3 Protocols

• 802.3i 10BASE-T
• 802.3u 100BASE-T
• 802.3ab 1000BASE-T
• 802.3x Flow Control
• 802.3af PoE
• 802.3at PoE

Port Management WatchdogPort Management Note The Watchdog is on under the VLAN/Extend modes and will attempt to reboot the plugged-in but inactive client. Reliability Grounding Methods Three-Prong PlugLightning/Surge Protection 4kVESD Contact Protection 6kVESD Air Protection 8kVEnvironment Operating Temperature: -10~50 ℃
Storage Temperature: -40~70 ℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
