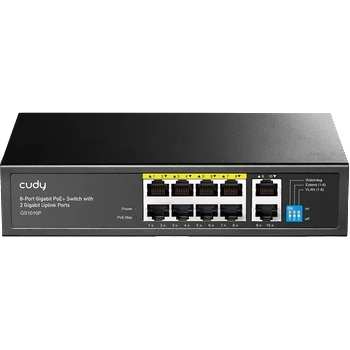

Cudy GS1010P V3.0

Cudy GS1010P 3.0





Reliabl e PoE for 24/7 Consistent Operation



IEEE 802.3at/af. Up to 30W Per Port.

Each PoE port delivers up to 30W of power, making it suitable for access points, IP cameras, digital signage, and most other PoE devices.

PoE Auto Recovery

Turn on the Watchdog function to monitor port activity. If a connected device freezes and stops transmitting data for 5 minutes, the Watchdog will automatically reboot the corresponding PoE port.



Built-In Modes for Practical Use Cases



VL AN Isolates Downlink Ports for Improved Safety

Turn on the VLAN mode to prevent client-side hacking, preventing sensitive data from leaking. The downlink clients will only be able to communicate with the uplink devices.

Extend for 250 m Transmission

For long-distance networking, enable the Extend mode to connect clients up to 250 meters away by limiting the port speed to 10 Mbps.







Specifications



Interfaces Gigabit RJ45 Ports 10  Gigabit RJ45 PoE Ports #1~#8  Max Power on a Single PoE Port 30W  PoE Port Notes The PoE ports comply with IEEE 802.3at/af standards.   PoE Priority Intelligent Power Management:
Automatically disconnect the lastly powered device when power exceeds budget.   Shielded RJ45 Port    Extend Mode Ports #1~#8  VLAN Mode Ports #1~#8  LED

• Power
• Link/ACT of Each Ethernet Port
• PoE Max Status

  Power Interfaces AC Inlet  Physical Buttons

• Extend On/Off
• VLAN On/Off
• PoE Watchdog On/Off

  Physical Buttons Note The PoE Watchdog will attempt to reboot the plugged-in clients that have been inactive for 5 minutes. Do not turn it on for clients with online auto-upgrade feature. Performance Max Copper Speed and Distance

• Cat. 3 or higher cable: 100 meters at 10 Mbps
• Cat. 5 or higher cable: 100 meters at 100 Mbps
• Cat. 5e or higher cable: 100 meters at Gigabit
• Cat. 5e or higher cable: 250 meters at 10 Mbps

  Copper Speed and Distance Note 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.   MAC Address Table 2048  Max Switching Capacity 20 Gbps  Max Forwarding Rate 14.88 Mpps  Jumbo Frame 9 KB  Packet Buffer 1 MbitPower Power Methods AC  Power Input 100-240V~ 50/60Hz  Power Supply 120W  Max Power Excluding PoE 10WSwitching 802.3 Protocols

• 802.3i 10BASE-T
• 802.3u 100BASE-TX
• 802.3ab 1000BASE-T
• 802.3x Flow Control
• 802.3af PoE
• 802.3at PoE

  PoE Management Intelligent Power ManagementReliability Grounding Methods Three-Prong Plug  EMS IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV  Environment Operating Temperature: 0~40 ℃ (32~104 ℉)
Storage Temperature: -40~70℃ (-40~158 ℉)
Operating Humidity: 10~90% non-condensing
Storage Humidity: 10~95% non-condensingMechanical Dimension 200×118×44 mm
7.87×4.65×1.73 inches  Product Weight 663.3 g (23.4 oz. )  Casing Material Metal  Installation

• Desktop
• Wall-mount
