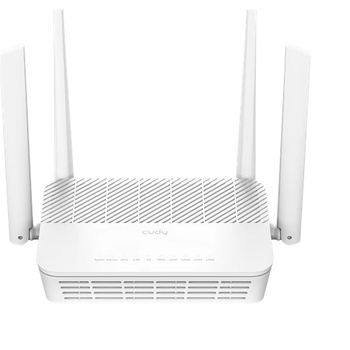

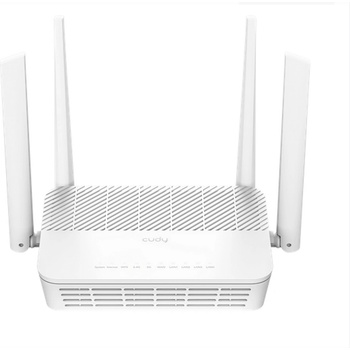

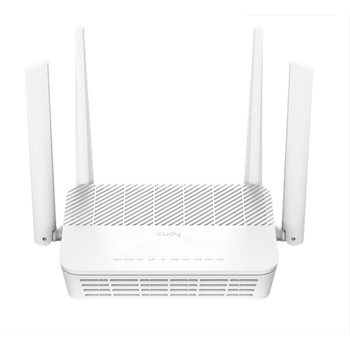

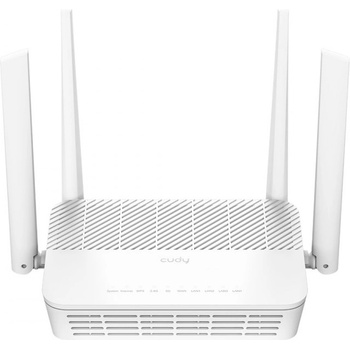

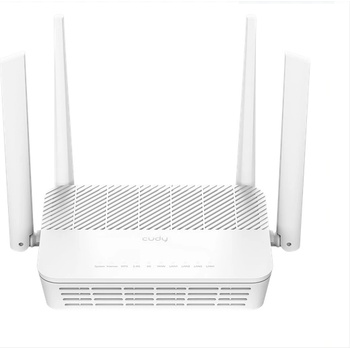

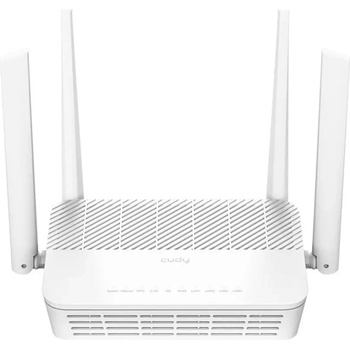

Cudy WR3000H

Cudy WR3000H



Upgraded Processing

Powerful CPU Transmits Data in No Time

The advanced 4-nm dual-core CPU delivers an impressive efficiency bump, enabling immersive online gaming streams and multiple 4K live feeds and maintaining responsiveness. A 128 MB ROM allows more software features, and 256 MB RAM connects more clients.



Super-Fast Wi-Fi in Every Corner

Super-Fast . Super Responsive.

Equipped with the highest 160 MHz bandwidth in Wi-Fi 6 and 1024-QAM, this router go up to 3 Gbps wirelessly, more than 2.5X faster than the last-gen AC 2x2 WiFi router.

Broader Coverage with More Streams

Five streams—3 in 5 GHz and 2 in 2.4 GHz—enhance the agility to navigate signals through obstacles. In addition, the high-gain antennas and Beamforming boost the signal to every corner of your home. *Compared with a 4-stream router Wi-Fi with 4 dBi antennas.



A 2.5G WAN Port and Four Gigabit LAN Ports



Mo re Devices, Lower Latency

Easier Combos in Games

In addition to the 2T2R structure, one aditional 5 GHz stream enhance the agility to navigate signals through obstacles. The high-gain antennas and Beamforming boost the signal to every corner of your home.

Connect More. Stay Fast.

Designed to connect 200 devices, with a maximum capacity of 512 devices, this router provides a more efficient network that loads faster for more without slowing down performance.



Versatile Functionalities

V PN Server and Client

Enables work from home and secure remote access with the support of popular VPN protocols. (Requires firmware newer than 1.16. 1)

DNS Encryption

Protects your browsing record from leaking with DNS over TLS service with Cloudflare, Google, and Quad.

Cudy Mesh Ready

Supports Cudy Mesh to enable seamless roaming for the whole home with other Cudy Mesh devices.

IPTV

Configure a specific network port for IPTV transmission to deliver television services from the network operator to your TV.



Specifications



Hardware Specs

CPU CPU Details 1.3 GHz Dual-Core, ARM Cortex-A53Memory/Storage Flash/ROM 128 MB (1 Gbit) NAND  DDR/RAM 256 MB (2 Gbit) DDR3Wireless 5 GHz Wi-Fi Speed 2402 Mbps  2.4 GHz Wi-Fi Speed 574 Mbps  5 GHz Wi-Fi Streams 2 Spatial Streams with 3T3R  2.4 GHz Wi-Fi Streams 2 Spatial Streams  Wi-Fi Antennas 4× Fixed  FEM or PA/LNA

• 5 GHz: 3× Internal
• 2.4 GHz: 2× Internal

  Beamforming    Range Performance Max: 220 m (722 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.   Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')Interfaces 2.5G RJ45 Ports 1  Gigabit RJ45 Ports 4  Ethernet Notes The 2.5G port is WAN port, the Gigabit ports are LAN ports  LED

• System
• Internet
• WPS
• 2.4 GHz Wi-Fi
• 5 GHz Wi-Fi
• WAN
• LAN
