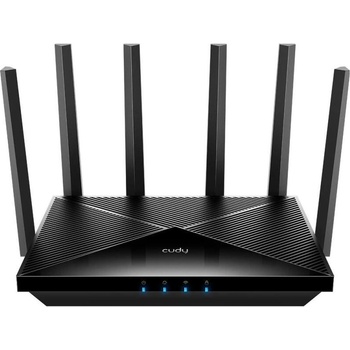

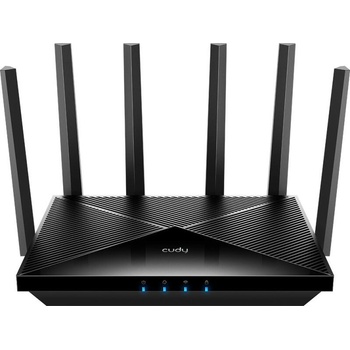

Cudy WR6500



Powerful CPU. Super-Responsive.

Feel the instantaneous response and smooth operation while browsing, streaming, and gaming on hundreds of devices. The advanced Quad-Core CPU and large 512 MB RAM delivers powerful performance.



Powerful Dual-Boost for Faster Connections

MLO (Multi-Link Operation) technology connects devices to two Wi-Fi bands simultaneously, delivering unmatched speed, unwavering stability, and ultra-low latency.





Specifications



CPU CPU Details 2.0 GHz Quad-core, ARM Cortex-A7Memory/Storage Flash/ROM 128 MB (1 Gbit) NAND  DDR/RAM 512 MB (4 Gbit) DDR4Wireless 5 GHz Wi-Fi Speed 5765 Mbps  2.4 GHz Wi-Fi Speed 688 Mbps  5 GHz Wi-Fi Streams 4 Spatial Streams  2.4 GHz Wi-Fi Streams 2 Spatial Streams  Wi-Fi Antennas 6× Fixed  FEM or PA/LNA

• 5 GHz: 4× External
• 2.4 GHz: 2× Internal

  Beamforming    Range Performance Max: 320 m (1050 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.   Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')Interfaces Gigabit RJ45 Ports 5  Ethernet Notes 1× WAN port, the rest are LAN ports  LED

• System
• Internet
• Wi-Fi
• WPS

  Physical Buttons

• Power On/Off Button
• WPS Button
• Reset Button

  Power Interfaces DC JackPower Power Methods DC  Power Input 12V⎓1.5A  Power Adapter In the Box Input: 100-240V~, 50/60Hz
Output: 12V⎓1.5A  Max Power Consumption (W) 17WReliability Environment

• Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
• Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 95% non-condensing

Certifications FCC, CEMechanical Installation

• Desktop
• Wall-mount
< /ul>  Dimension Main Part:
253×152.5×48.2 mm
9.96×6×1.9 inches
Antenna:

   Product Weight 580.0 g (20.46 oz. )
