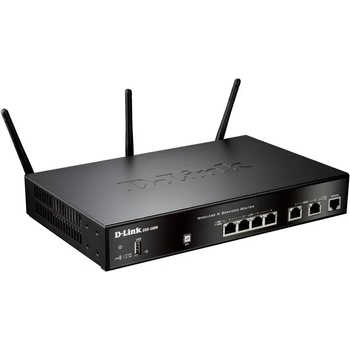

D-Link DSR-500N

D-Link DSR-500N

-Ethernet:
2 10/100/1000 Mbps WAN Ports
4 10/100/1000 Mbps LAN Ports

-Wireless:
802.11 b/g/n (2.4Ghz)
3 Detectable 2dBi Omni-Directional Antennas

-USB:
1 USB 2.0

-Console:
1 RJ-45

-Firewall Throughput:
70Mbps

-VPN Throughput:
35Mbps

-Concurrent Sessions:
30,000

-New Sessions (per second) 300/600:
300

-Policies:
100 (Each Feature)
200 (Firewall Rule)

-Internet Connection Type:
Static / Dynamic IP Yes

-PPPoE/ L2TP/ PPTP:
Yes

-Multiple PPPoE:
Yes

-Firewall System:
Static Route Yes

-Dynamic Route:
RIPv1, RIP v2, OSPF1

-Inter-VLAN Route
Yes

-Dynamic DNS:
Yes

-NAT, PAT:
Yes

-Web Content Filtering:
Static URL, Keywords

-Intrusion Prevention System (IPS):
Signature package included in Firmware

-Networking:
DHCP Server/ Client Yes

-DHCP Relay:
Yes

-IEEE 802.1q VLAN:
Yes

-VLAN:
Port Based

-IP Multicast:
IGMP Proxy

-IPv6:
Yes

-Route Failover:
Yes

-Outbound Load Balancing:
Yes

Wireless

-Multiple Service Set Identifier (SSID):
Multiple Service Set Identifier (SSID)
Service Set Identified (SSID) to VLAN Mapping

-SSID to VLAN Mapping Wireless Security
WEP, WPA-PSK, WPA-EAP, WPA2-PSK, WPA2-EAP

-Virtual Private Network (VPN)
VPN Tunnels 35

-Encryption Methods
DES, 3DES, AES, Twofish, Blowfish, CAST-128, NULL

-IPSec/PPTP/L2TP Server:
Yes

-IPSec NAT Traversal:
Yes

-Dead Peer Detection:
Yes

-IP Encapsulating Security Payload (ESP):
Yes

-IP Authentication Header (AH):
Yes

-VPN Tunnel Keep Alive:
Yes

-Hub and Spoke:
Yes

-SSL Virtual Private Network (SSL VPN):
SSL VPN Tunnels 10

-Bandwidth Management:
Max. Bandwidth Control Yes

-Priority Bandwidth Control
Port-Based QoS (3 Classes)

-System Management:
Web-based User Interface
HTTP, HTTPS

-Command Line:
Yes

-SNMP:
v1, v2c, v3
