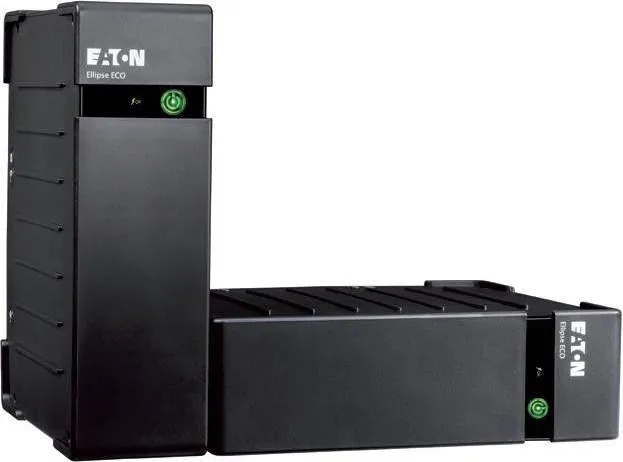

Eaton Ellipse ECO 1200 USB DIN (EL1200USBDIN)

Marketing DescriptionEllipse ECO 1200 USB DIN is a off-line UPS. As well as providing a power supply backed up by a battery to keep equipment operating during a power failure, the Ellipse Eco also provides effective protection against damaging surges.
The Eco Control function automatically disables peripherals when the master device is turned off in order to save up 25 % more energy compared to previous generation of UPS. This unit can either be placed horizontally, 19 inch rack mounted or wall mounted. The Ellipse Eco also includes the Eaton Intelligent Power Manager software. Ellipse ECO is an ideal protection for all business computers and electronic devices in an office environment. Product Features

• Energy-efficient power protection for business computers
  With an efficient electrical design and the EcoControl function, which automatically disables peripherals when the master device is turned off, the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs. As well as providing a power supply backed up by a battery to keep equipment operating during a power failure, the Ellipse ECO also provides effective protection against damaging surges.
• Easy integration and installation
  The Ellipse ECO's extra-flat design makes it easy to install in any office environment: installation options include vertical box format, below the desk, horizontally under a monitor, 19 rack-mounted and wall-mounted. The USB models are designed to be compatible with a wide variety of different computer models. Eaton power management software is delivered as standard and is compatible with all major operating systems.

GeneralDevice TypeUPS - rack-mountable / externalHeight (Rack Units)2URack Size19Power DeviceUPS TechnologyOff-lineInput VoltageAC 230 VInput Voltage RangeAC 184 - 264 VInput Voltage Range (Adjustable)AC 161 - 284 VFrequency Provided50/60 HzFrequency Required50/60 HzInput Connectors1 x powerPower Output Connectors Details4 (UPS and surge)
4 (surge)Output VoltageAC 220/230/240 V 50/60 HzPower Capacity750 Watt / 1200 VADataline Surge ProtectionNetwork/phone line - RJ-45/RJ-11Surge SuppressionYesCircuit ProtectionCircuit breakerBatteryTechnologyLead AcidRun Time (Up To)10 min at half load
6 min at 70% loadNetworkingRemote Management InterfaceUSBExpansion / ConnectivityInterfaces1 x management (USB) - 4 pin USB Type BMiscellaneousCables IncludedUSB cable - externalRack Mounting KitOptionalFeaturesWall mountable, audible alarm, LED indicators, deep discharge protection, cold-start function, Eco-efficiencyCompliant StandardsCB, IEC 62040-1-1, IEC 62040-2, IEC 60950-1, IEC 61643-1Software / System RequirementsSoftware IncludedIntelligent Power ManagerOS RequiredLinux, Apple MacOS X, Microsoft Windows Vista / XP / 7Manufacturer WarrantyService & SupportLimited warranty - 2 yearsDimensions & WeightWidth8.1 cmDepth31.2 cmHeight30.5 cmWeight6.7 kg
