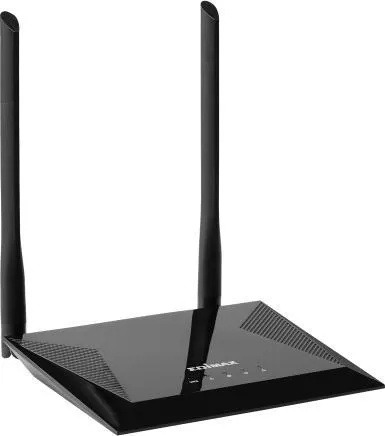

EDIMAX BR-6428nS V5





4-in-1 N300 Wi-Fi Router, Access Point, Range Extender, & WISP

BR-6428nS V5

•


  4-in-1 Router, Access Point, Range Extender, and WISP





•


  Smart Setup for smart, automatic and quick installation with no CD required





•


  High Gain Antenna: Enhances wireless range and coverage





•


  Guest network: Provides connectivity while isolating guests from your primary network





•


  Easy One-Click Setup with Wi-Fi Protected Setup (WPS) button










4-in-1 Wi-Fi Router, Access Point, Range Extender, and WISP

The BR-6428nS V5 can work as 4 major modes for wireless networking, including router, access point, range extender, and WISP modes. No matter you want to use it simply over a router for Internet sharing, as an access point for transferring wired connection into wireless network, extending the signals to be a range extender, or sharing a wireless Internet connection with all your devices, just switch it for your network environment by using the smart setup wizard.











SPECIFICATIONS

HARDWARE ​

Interface

1 x RJ-45 10/100Mbps WAN port, 4 x RJ-45 10/100Mbps LAN port

Button

WPS/Reset

LED Indicator

Power, Wireless , Internet, LNK/ACT for LAN, WPS

Antenna

2 x antennas

Memory

2 MB NOR Flash, 8 MB RAM

Power Adapter

DC 9V/0.4A

Dimensions / Weight

153.8(W)mm x 107(D)mm x 25(H)mm, 150g

WIRELESS

Standards

802.11 b/g/n/

Frequency

2.4GHz

Maximum Data Speed

2.4GHz: 300Mbps

Receive Sensitivity

2.4GHz:

  11g (11Mbps): -79 ±2dBm,    11g (54Mbps): ‐68±2dBm

  11n(20MHz, MCS7): ‐67±2dBm,    11n(40MHz, MCS7): ‐64±2dBm

Transmit Power

11n:16dBm ±1dBm,  11g:17dbm ±1dBm

Guest Network

2.4GHz guest network × 1

Security

WEP, WPA , WPA2, WPA-PSK & WPA2-PSK security

Hardware & software WPS configuration

SOFTWARE FEATURES

Management

Multi-language user interface

Remote management, access control

System status and security log

Firmware upgradable

Smart Setup, no CD required

WAN

Protocol: Dynamic IP, Static IP, PPPoE

Supports RJ-45 cable

Port Forwarding

Virtual Server, Port Triggering, UPnP, DMZ

DHCP

Server, Client, DHCP Client List, Address Reservation

Dynamic DNS

DynDns

Access Control

Bandwidth Control, Host List, Access Schedule

Firewall Security

SPI Firewall, IP and MAC Address Binding, Wireless MAC Filtering

Protocols

Supports IPv4

Guest Network

2.4GHz guest network x 1

Operation Mode

Wi-Fi Router , Access Point, Range Extender, WISP

OTHERS

Certification

CE, RoHS

Environmental Condition

Operating humidity: 10 - 90% (non-condensing)

Operating temperature: 32 - 104°F (0 - 40°C)
