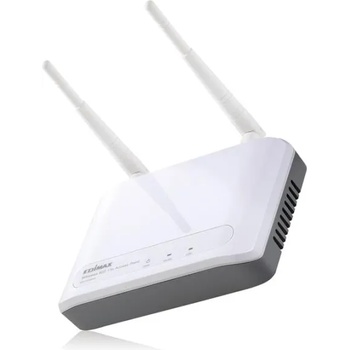

EDIMAX EW-7416APn

Към всеки кабелен, безжичен рутер, IP камера предлагаме конфигурация и настройка на преференциални цени.
Ако желаете да се възползвате от тази възможност в полето "Коментари за вашата поръчка" напишете "желая настройка на продукта"
Ние ще се свържем с вас за да уточним параметрите на настройката!!!!

Wireless 802.11n Access Point
Acting as a bridge between the wired Ethernet and the 2.4GHz wireless IEEE 802.11b/g/n, this wireless access point let your wireless client stations access both the wired and the wireless network nodes.

Universal Repeater Mode
The Universal Repeater function could extend the coverage and signal strength for the current wireless environment. This standardized function is compatible with other wireless APs and Routers. Users can use this feature to build up a large wireless network in a huge space like airports, hotels and schools…etc.

Robust Wireless Security with WPA and WPA2
Except for the basic security control by ESSID and 64/128 bit key length WEP encryption, this access point also supports the advanced security features, like MAC access control, IEEE 802.1x authentication, TKIP, AES  and hidden ESSID. It provides a total solution for you to build up a secure wireless network environment that can prevent from all kinds of hacker intrusion.

Web Configuration
You can configure this access point through the friendly Web user interface with a browser.

Features



Complies with the IEEE 802.11b/g and IEEE802.11n   standards. Supports 2.400~2.4835GHz frequency band. High data rate up to 300Mbps network speed. Auto rate fallback in case of obstacles or interferences. Supports point-to-point and point-to-multi point bridge function. Supports WDS (Wireless Distributed System) repeater mode. Supports Universal Repeater mode. Supports AP Client mode. Supports four sets of ESSID to group the different wireless networks. Supports roaming link integrity. Provides 64/128 bit key length WEP data encryption. Supports WPA, WPA2 security enhanced function (pre-shared key, 802.1x,   TKIP, AES …). Supports WPS (Wi-Fi Protected Setup) function. Provides MAC access control. Provides hidden SSID function. Supports Web-based configuration. Firmware upgradeable via Web browser.

  Hardware Interface SoC & Wireless Module  POWER ADAPTER

 2x3dBi Dipole Antenna

 Reset/WPS button

 LED indicators: Power, WLAN, WAN

SoC: Ralink RT2880

Ralink RT2880 + RT2820

12VDC, 1A

OUTPUT POWER  INSTALLATION  MEMORY

11n:15dBm ± 1dBm, 11g:15dBm ± 1dBm, 11b:17 ± 1dBm

Quick installation Guide

4 MB Flash

16 MB SDRAM

SECURITY  LAN PORT  HUMIDITY & TEMPERATURE

64/128-bit WEP, WPA and WPA2

MAC Filter

10/100M UTP Port x 1

Max. 10~90% (Non Condensing)

10 ~40°C

SYSTEM REQUIREMENTS  DIMENSION  CERTIFICATIONS

Windows 95/98/ME/2000/XP/Vista

30(H) x 127(W) x 96(D) mm

CE, FCC

Гаранция: 24 м.
