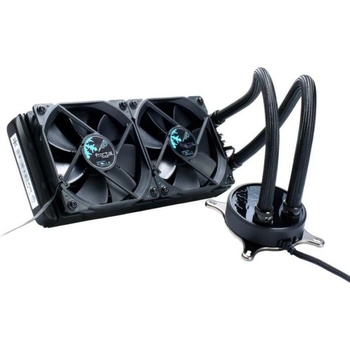

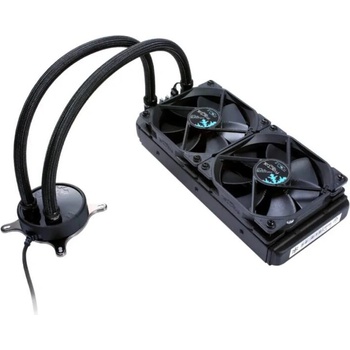

Fractal Design Celsius S24 Water Blackout (FD-WCU-CELSIUS-S24-BKO)







Key features

The Celsius series lets you choose between an intelligent temperature-controlled auto mode to adjust fan and pump speeds in real-time for optimum balance of cooling performance and silence, or a PWM mode enabling precision manual tuning for any usage situation imaginable.

• Radiator fittings use standard G 1/4" thread for maximum compatibility and expandability with standard DIY components


• Easily add and integrate a GPU block of your choice to eliminate noisy graphics card fans so the only sound you hear is the sound of your game
















•


  The Celsius series uses a combination of cutting edge technology and premium sound dampening materials to deliver extreme cooling performance with minimum noise output.
















Temperature-controlled

An intelligent temperature-controlled auto mode adjusts fan and pump speeds in real-time for optimum balance of cooling performance and silence





Fan hub

An integrated fan hub with concealed cable routing simplifies cable management for a clean installation





Thermal grease

Thermal paste is pre-applied and has high thermal conductivity







General specifications

Coldplate technology:  Fifth generation

Coldplate material:  Copper

Additional sound dampening:  Integrated

Thermal paste:  Pre-applied, high thermal conductivity

Sockets supported (Intel):  1150, 1151, 1155, 1156, 1366, 2011, 2011-v3, 2066 (via included 2011-v3 kit),

Sockets supported (AMD):  AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+, TR4 (via included bracket in AMD Threadripper box)

Tube length:  400 mm

Tube material:  Sleeved low-permeability rubber tubes

Fittings, block side:  Durable metal fittings, non-removable

Fittings, radiator side:  Durable metal fittings, G 1/4" thread

Fan control:  Integrated dual mode

Fan specifications

Fan type:  Fractal Design Dynamic X2 GP-12 PWM

Rotational speed:  500-2,000 RPM

Bearing:  LLS

PWM control:  Yes

Acoustical noise (full speed):  32.2 dB (A)

Maximum air flow:  148.8 m3/h | 87.6 CFM

Maximum static pressure:  2.30 mm H2O

Input voltage:  12 V

Maximum input current:  0.2 A

MTBF:  >100,000 hours



Pump specification

Rotational speed:  1,950-3,150 RPM

Bearing type:  Ceramic bearing and shaft

PWM control:  Yes

Acoustical noise (full speed):  20,0 dB (A)

Maximum pressure, 50°C:  1m H2O | 1.45 PSI

Input voltage:  12 V

Input current (without fans):  0.15 A

Rated input power (with fans):  9 W

MTTF:  >50,000 hours



Radiator specification

Dimensions:  284 x 122 x 31 mm

Housing material:  Aluminum

Fin material:  Aluminum

Port threads:  G 1/4"

Fan screw threads:  UNC 6-32
