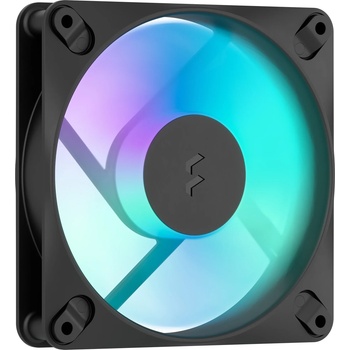

Fractal Design Dynamic 3 12 Reverse RGB (FD-F-DY3-1204)

Specifications

Size (LxWxH)
120 x 120 x 25 mm

Screw hole pattern
105 x 105 mm

Bearing
Rifle

LED type (RGB Version)
ARGB Gen 2 (8 LEDs)

Number of blades
7

Rotational speed
350 (±150) - 2200 (±10%) RPM

Noise level
36.2 dB(A)

Maximum airflow
65.38 CFM

Maximum airflow
111.1 m³/h

Maximum pressure
2.54 mm H2O

Fan typical input current
0.16 A±0.06 A

Fan typical input power
1.92 W±0.72 W

Fan maximum input current (non-RGB Version)
0.22 A

Fan maximum input power (non-RGB Version)
2.58 W

Fan maximum input current (RGB Version)
0.27 A

Fan maximum input power (RGB Version)
3.29 W

Fan input voltage
12 V

Minimum startup voltage
7 V

LED rated voltage (RGB Version)
5 V

LED rated current (RGB Version)
0.12 A

LED Rated input power (RGB Version)
1.48 W

MTTF
> 90 000 h

Cable length
500 mm + 60 mm daisy chain

Cable type (RGB Version)
3-pin RGB connector

Cable type (non-RGB Version)
4-pin PWM connector
