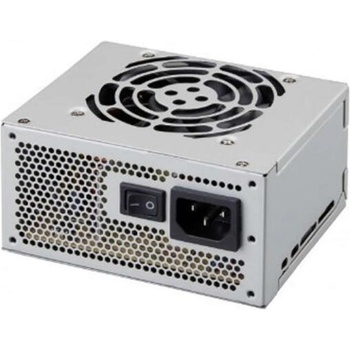

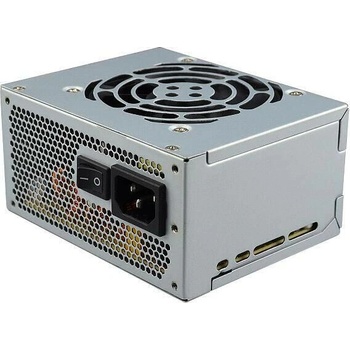

FSP FSP350-50SAC 350W 80 PLUS Bronze (9PA350CY03)

FSP FSP350-50SAC

FSP SAC Series features with eco-friendly design, which allows SAC series to reach up to 85% efficiency. SAC series also equipped with complete protection to prevent your system from damage. SAC series does the job efficiently and reliably, making it a stable power supply unit built to satisfy the demands of all kind of system build.





• Intel PSDG SFX 12V V3.42 version


• 80 PLUS BRONZE Certification


• Worldwide Input Voltage 100Vac-240Vac


• Single 12V Rails Fulfill all System Demand


• Active PFC Within 0.99 Power Factor Correction


• DC to DC Design for Better System Compatiblity


• Forward & D2D To Offer High Performance and Efficiency


• Smart Fan Speed Control Provide Ultra Silent Working Environment


• National Safety Regulations Certification: CB 62368, CB 60950, CE, TUV, CUL

Specifications:

Dimension:

(L x W x H)
100 x 125 x 63.5 (mm)

3.94 x 4.92 x 2.50 (inch)
Environment


Efficiency:
80 Plus Bronze
Working temperature:
0°C to 40°C

Hold-up time:
115V / 60Hz: ≥ 16ms

230V / 50Hz: ≥ 16ms
Storage temperature:
-20°C to + 80°C

Operating altitude
2,000 meters above sea level
Working humidity:
90% RH non-condensing

MTBF:
100,000 hours of continuous operation at 25°C, Max. output load
Storage humidity:
90% RH non-condensing

Outputs
+3.3V
+5V
+12V
-12V
+5Vsb

Max
20A
20A
29.2A
0.3A
2.5A

Min.
0A
0A
0.1A
0A
0A

Regulation
±5%
±5%
±5%
±5%
±5%

Ripple/Noise
50 mV
50 mV
120 mV
120 mV
50 mV
