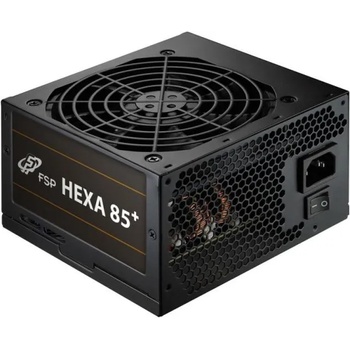

FSP HEXA 85+ Pro 550W 80 PLUS Bronze (PPA5505500)

Fortron HEXA 85+ Pro 550

PPA5504301



HEXA 85+ series, FSP brand new 80 PLUS® bronze ATX PSU, featured with DC to DC module and +12V single-rail design, taken with full Japanese capacitors and quiet 120mm silent fan, built in with complete protections: OCP, OVP, SCP, OPP, OTP and approved by global safety regulation. HEXA 85+ series comes out with four models – 350W, 450W, 550W and 650W to satisfy various needs.

• Complies with ATX12 v2.4 & EPS12 v2.92


• High efficiency ≧ 85%


• Active PFC ≧ 90%


• Comply with 80 PLUS® bronze certification


• +12V single-rail design


• Full Japanese E-capacitors


• Quiet 120mm silent fan


• Complete protections: OCP, OVP, SCP, OPP, OTP


• Global safety approved



80 Plus® Bronze Certification

HEXA 85+ , 80 PLUS ® bronze certified, saves energy through its high efficiency up to 85%



Complete Protection

OCP, OVP, SCP, OPP, UVP, OTP, a full guardian of circuit protections to keep hardware safe.



AC/DC

AC Input
100-240Vac~  10-5A  50-60Hz

DC Output
+3.3V
+5V
+12V
-12V
+5Vsb

Max Output Current
20A
20A
45.84A
0.3A
2.5A

Max Combined Power
100W
550W
3.6W
12.5W

Total Power
550W (at 40 °C)



Specifications

Model
HA550

Rated Output Power
550W

Form Factor
ATX PSU

80 PLUS Certification
Bronze

Input Voltage
100-240 Vac

Input Current
10-5A

Input Frequency
60-50 Hz

PFC
Active PFC

Efficiency
85%

Fan Type
Sleeve Fan, 120mm

Dimensions(L x W x H)
150 x 140 x 86 mm

Weight
1.55 kg

Protection
OCP, OVP, SCP, OPP, OTP
