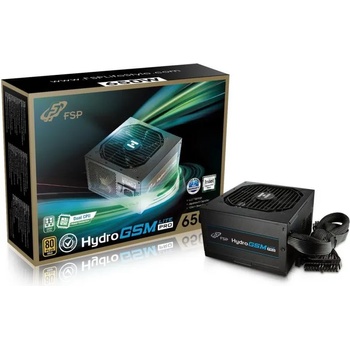

FSP Hydro GSM Lite Pro 650W 80 PLUS Gold (PPA6505801)

FSP Hydro GSM Lite PRO







Sophisticated and User-Friendly for Fan and Look Design

Hydro GSM LITE PRO series is mounted with an octagonal stainless fan grill to form an excellent airflow for optimal cooling. The surface is coated with matte black finish to prevent any scratches.









LLC Topology

The LLC topology allows for zero voltage switching of the main stitches thereby dramatically lowering switching losses and boosting efficiency. Both of +3.3V and +5V DC-DC module combined +12VSR circuit offers supreme efficiency, voltage stability, and high system compatibility especially in cross regulation (unbalance load) mode.







Japanese Electrolytic capacitors

Hydro GSM Lite PRO series uses  Japanese electrolytic capacitors to ensure a longer lifetime, especially main-capacitor adopting 450V voltage durability to protect your PSU from sudden power change!







Semi-Modular Design

Hydro GSM LITE PRO series is designed semi-modular that not just saves user’s time for installation, but also provides your system a neat and tidy look for cable management.





Specifications

Form Factor ATX80 PLUS Certification GoldInput Voltage 100V-240VInput Current 8-4AInput Frequency 50-60 HzPFC Active PFCEfficiency ≥90% at typical loadFan Type Silent Fan, 120 mm (HYB)Dimensions(L x W x H) 150 x 140 x 86 mmProtection OCP, OVP, SCP, OPP, OTPAC/DCAC Input

100-240Vac~  8-4A  50-60Hz

DC Output

+3.3V

+5V

+12V

-12V

+5Vsb

Max Output Current

20A

20A

54.17A

0.3A

3.0A

Max Combined Power

100W

650W

3.6W

15W

Total Power

650W

Cables ATX 24

4+4 PIN

PCIe 6+2

SATA

Molex
(PERIPHERAL)

Floppy

Connectors

1

2

4

8

3
