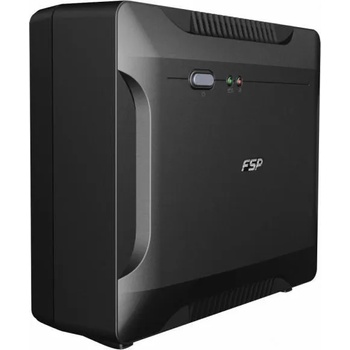

FSP Nano 600VA (PPF3600210)

Fortron Аварийно захранване NANO 600 UPS 600VA Offline, 360W
Fortron Аварийно захранване NANO 600 UPS 600VA Offline, 360W

Model Nano 600
Capacity 600 VA / 360W
Input Voltage 110 / 120 VAC or 220 / 230 / 240 VAC
Input Voltage Range 90~145 VAC or 180~270 VAC
Input Frequence 50Hz or 60Hz
Output Voltage 120 VAC or 230 VAC 10%
Output / Frequence Range 50 Hz or 60 Hz 1 Hz
Output / Transfer Time (Typical) Typical 2-6 ms
Output / Waveform (Batt. Mode) Simulated Sine Wave
Battery / Battery Type& Number 12 V / 7 AH x 1
Battery / Backup Time (One PC load@120W) 10~15 min.
Battery / Typical Recharge Time 8 hours recover to 90% capacity
Indicators / Ac Mode Green lighting
Indicators / Battery Mode Green flashing every 10 seconds
Indicators / Fault Red lighting
Protection / Full Protection Overload, discharge and overcharge protection
Alarm / Battery Mode Sounding every 10 seconds
Alarm / Low Battery Sounding every second (Batt. Mode)
Alarm / Fault Continuously sounding
Outlet sockets 2 x schuko
Physical Dimension, D x W x H (mm) 228 x 82.5 x 207 (@vertical stand)
Physical Net Weight (kg) 2.7
Operating Environment / Humidity 0-90%Fortron NANO 600 UPS 600VA Offline, 360W

Model Nano 600
Capacity 600 VA / 360W
Input Voltage 110 / 120 VAC or 220 / 230 / 240 VAC
Input Voltage Range 90~145 VAC or 180~270 VAC
Input Frequence 50Hz or 60Hz
Output Voltage 120 VAC or 230 VAC 10%
Output / Frequence Range 50 Hz or 60 Hz 1 Hz
Output / Transfer Time (Typical) Typical 2-6 ms
Output / Waveform (Batt. Mode) Simulated Sine Wave
Battery / Battery Type& Number 12 V / 7 AH x 1
Battery / Backup Time (One PC load@120W) 10~15 min.
Battery / Typical Recharge Time 8 hours recover to 90% capacity
Indicators / Ac Mode Green lighting
Indicators / Battery Mode Green flashing every 10 seconds
Indicators / Fault Red lighting
Protection / Full Protection Overload, discharge and overcharge protection
Alarm / Battery Mode Sounding every 10 seconds
Alarm / Low Battery Sounding every second (Batt. Mode)
Alarm / Fault Continuously sounding
Outlet sockets 2 x schuko
Physical Dimension, D x W x H (mm) 228 x 82.5 x 207 (@vertical stand)
Physical Net Weight (kg) 2.7
Operating Environment / Humidity 0-90%
