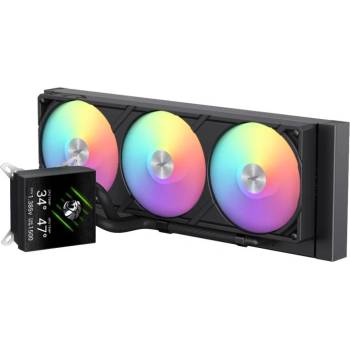

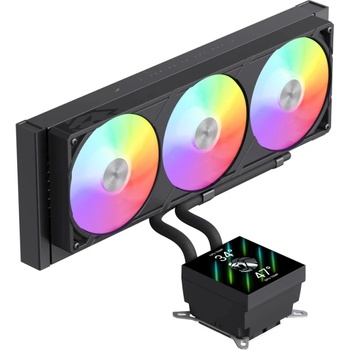

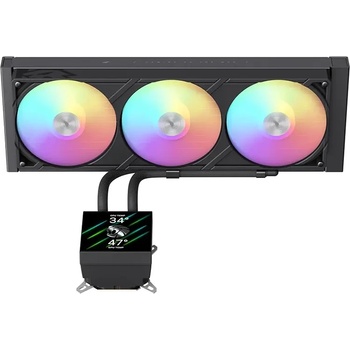

GAMEMAX Water Cooling GLACIER 360 LCD BK Addressable RGB (9503-0100R0057)



Innovative side-mounted tube design

Unique internal routing keeps tubing concealed behind the radiator, delivering a cleaner, more refined look inside the case.

3.95" LCD display with custom content

Features a sharp 720x720 high-definition screen preloaded with exclusive themes and animations for a personalized touch.

Modular magnetic LCD screen

The screen can be connected separately with a TYPE-C cable to be used as a DlY secondary screen for the chassis.

* Please note that the USB cable on the pump head and the Type-C cable on the screen cannot be connected at the same time to prevent damage to the screen.

Innovative mobile tube clamp

Allows precise adjustment of cooling tube angles for a more organized and professional internal layout.

Integrated high-performance fans

Built-in integrated 360mm fans deliver up to 85.82CFM airflow and 2.23mmH, 0 static pressure, all connected through a single cable for a cleaner, simpler build.



Reinforced and convenient

GAMEMAX Elements

Large Size Pure Copper Base

Low Evapotranspir-ation Water-Cooled Conduit





Specifications



TDP 330WPump head Pump Dimensions L79*W96.5*H62.5mmBase material (CPU contact surface) CopperPump speed 800-2500RPM±200RPM (support variable speed)Water pump Material PPSPump Bearing Stainless ShaftPump Connector PWM 4pinRated Voltage DC 12VRated Current ≦0.35 ARated Input Power ≦4.2 WNoise(Max) 30dBMax. lift head 1.5MMinimum discharge 1300 mL/minStorage temperature -10℃～70℃Operating temperature -10℃～60℃M. T. B. F 30000hrsCold platoon Cold platoon size L395*W139*H27mmCold pl atoon material AluminumWater pipe Water pipe material Braided pipeLength of water pipe L=263±3mmFan Model number 360 integrated fanDimensions L360mm x W120mm x H25mmFan Speed 800~2000 rpm ± 10%Fan Bearing Hydraulic bearingAir Pressure 2.23mm - H2OAir flow 85.82 CFMNoise 31.5db(A)Mode of control PWM, ARGBRated Voltage DC 12VRated Current 1.05 ARated Input Power 12.6 WMain functions Display 3.95Resolution 720*720 pxRefresh rate 60HzBrightness 300nitsCompatibility Intel LGA115X/1200/1366/1700/1851AMD AM4/AM5
