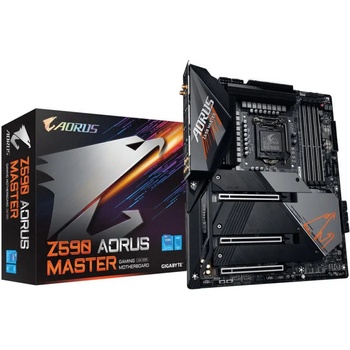

GIGABYTE Z590 AORUS MASTER

Технически детайли

Graphics:Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz; * Support for DisplayPort 1.2 version and HDCP 2.3
CPU's supported:LGA1200 package: 11th Generation Intel® Core i9 processors / Intel® Core i7 processors / Intel® Core i5 processors; 10th Generation Intel® Core i9 processors / Intel® Core i7 processors / Intel® Core i5 processors / Intel® Core i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*; * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family. L3 cache varies with CPU
Chipset:Intel® Z590 Express Chipset
Expansion Slots:1 x PCI Express x16 slot, running at x16 (PCIEX16); * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. ; 1 x PCI Express x16 slot, running at x8 (PCIEX8); * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. ; (The PCIEX16 and PCIEX8 slots conform to PCI Express 4.0 standard. )*; * Supported by 11th Generation processors only. ; 1 x PCI Express x16 slot, running at x4 (PCIEX4); (The PCIEX4 slot conforms to PCI Express 3.0 standard. )
Storage:CPU: 1 x M. 2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)*; * Supported by 11th Generation processors only. ; Chipset: 1 x M. 2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB); 1 x M. 2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2M_SB); 6 x SATA 6Gb/s connectors; Support for RAID 0, RAID 1, RAID 5, and RAID 10; * Refer to "1-9 Internal Connectors, " for the installation notices for the M. 2 and SATA connectors. ; Intel® Optane Memory Ready
Memory type:11th Generation Intel® Core i9/i7/i5 processors: Support for DDR4 5400 (O. C)/ DDR4 5333(O. C. )/ DDR4 5133(O. C. )/DDR4 5000(O. C. )/4933(O. C. )/4800(O. C. )/ 4700(O. C. )/ 4600(O. C. )/ 4500(O. C. )/ 4400(O. C. )/ 4300(O. C. )/4266(O. C. ) / 4133(O. C. ) / 4000(O. C. ) / 3866(O. C. ) / 3800(O. C. ) / 3733(O. C. ) / 3666(O. C. ) / 3600(O. C. ) / 3466(O. C. ) / 3400(O. C. ) / 3333(O. C. ) / 3300(O. C. ) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules; 10th Generation Intel® Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules; 10th Generation Intel® Core i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules; 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
I/O:1 x Q-Flash Plus button; 1 x Clear CMOS button; 2 x SMA antenna connectors (2T2R); 1 x DisplayPort; 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support; 5 x USB 3.2 Gen 2 Type-A ports (red); 4 x USB 3.2 Gen 1 ports; 1 x RJ-45 port; 1 x optical S/PDIF Out connector; 5 x audio jacks
Connectors:1 x 24-pin ATX main power connector; 2 x 8-pin ATX 12V power connectors; 1 x CPU fan header; 1 x water cooling CPU fan header; 4 x system fan headers; 4 x system fan/water cooling pump headers; 2 x addressable LED strip headers; 2 x RGB LED strip headers; 3 x M. 2 Socket 3 connectors; 6 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 2 support; 2 x USB 3.2 Gen 1 headers; 2 x USB 2.0/1.1 headers; 1 x noise detection header; 2 x Thunderbolt add-in card connectors; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only); 1 x power button; 1 x reset button; 2 x temperature sensor headers; 1 x Clear CMOS jumper; 2 x BIOS switches; Voltage Measurement Points
Audio:Realtek® ALC1220-VB codec; * The front panel line out jack supports DSD audio. ; ESS ES9118 DAC chip; Support for DTS:X® Ultra; High Definition Audio; 2/4/5.1/7.1-channel; Support for S/PDIF Out
LAN:Aquantia 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit)
BIOS:2 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; Support for DualBIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor:ATX Form Factor; 30.5cm x 24.4cm
OS:Support for Windows 10 64-bit
Other:Intel® Wi-Fi 6E AX210; WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; BLUETOOTH 5.2; Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate; * Actual data rate may vary depending on environment and equipment.
