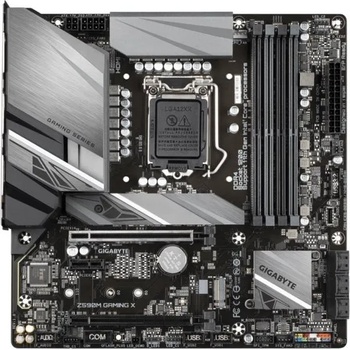

GIGABYTE Z590M Gaming X

GIGABYTE Z590M GAMING X LGA1200 DDR4 6xSATA 2xM. 2 ATX MB
id="p4101427"> GIGABYTE Z590M GAMING X LGA1200 DDR4 6xSATA 2xM. 2 ATX MBManufacturer GIGABYTEManufacturer Part No Z590M GAMING XProduct Features

• Direct power design
  Z590 GAMING X motherboard uses a 12+1 phases digital CPU power design which includes both digital PWM Controller and DrMOS. These 100% digital controller and additional 8+4 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the Intel 11th Gen CPU.
• Performance
  With the best quality components and GIGABYTE R&D design capability, the Z590 GAMING is a true beast among motherboards.
• Advanced thermal solution
  Z590 GAMING X uses high performance Fully Covered thermal design with high coverage MOSFET Heatsinks and thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers.
• Next generation connectivity
  A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. Z590 GAMING X provides all next generation network, storage, connectivity to keep you up to speed.
• Definitive aesthetics
  Z590 GAMING X features RGB FUSION 2.0 and offers users the option to control onboard, external light strips, and/or GIGABYTE devices with RGB/Addressable RGB LEDs to make their PC more unique and stylish.
• Ultra durable
  GIGABYTE is reputable for its product durability and high quality manufacturing process. Needless to say, it is used the best components that can be found for the Z590 GAMING motherboard and reinforce every slot to make each of them solid and durable.

GeneralProduct TypeMotherboard - micro ATXChipset TypeIntel Z590Processor SocketLGA1200 SocketMax Processors Qty1Compatible ProcessorsPentium, Celeron, Core i5, Core i3, Core i7, Core i9 (supports 11th Generation Intel Core and 10th Generation Intel Core / Pentium Gold / Celeron)Supported RAMMax Size128 GBTechnologyDDR4Bus Clock2400 MHz, 2133 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3200 MHzSupported RAM Integrity CheckNon-ECC, ECC (operate in non-ECC mode)Registered or BufferedUnbufferedFeaturesDual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC modeAudioTypeHD Audio (8-channel)Compliant StandardsHigh Definition AudioLANNetwork Interfaces2.5 Gigabit EthernetExpansion / ConnectivityExpansion Slots1 x CPU
4 x DIMM 288-pin
1 x PCIe 4.0 x16
1 x PCIe 3.0 x16 (x4 mode)
1 x PCIe 3.0 x1Storage InterfacesSATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -connectors: 1 x M. 2
SATA-600 / PCIe 3.0 -connectors: 1 x M. 2Interfaces1 x PS/2 keyboard / mouse
1 x DisplayPort
1 x audio line-in - mini-jack
1 x audio line-out - mini-jack
1 x microphone - mini-jack
1 x USB-C Gen2
1 x USB 3.2 Gen 2
4 x USB 3.2 Gen 1
1 x audio line-out (side surround) - mini-jack
1 x audio line-out (center/subwoofer) - mini-jack
1 x audio line-out (rear) - mini-jack
1 x LAN (2.5Gigabit Ethernet)
1 x HDMIInternal Interfaces4 x USB 2.0 - header
2 x USB 3.2 Gen 1 - header
1 x USB-C Gen 1 - header
1 x audio - header
1 x SPDIF out - header
2 x Thunderbolt - header
1 x serial - headerPower Connectors4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connectorFeaturesBIOS TypeAMIBIOS FeaturesWfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 supportHardware MonitoringCPU core temperature, chassis temperature, system voltage, CPU core voltage, fan fail warning, fan controlHardware FeaturesQ-Flash, On/Off Charge, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, 6 Layer PCB, Q-Flash Plus, Game Boost, GIGABYTE Double Locking Bracket, Intel Optane Memory Ready, Ultra Durable PCIe Armor, M. 2 Thermal Guard, pre-mounted I/O shield, Solid Pin Power Connectors, 12+1 Phase Power Design, RGB FUSION 2.0, GIGABYTE Smart Fan 6MiscellaneousSoftware IncludedNorton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth ControlWidth24.4 cmDepth24.4 cm Technical data provided by third party. We assume no liability for errors within these data.
