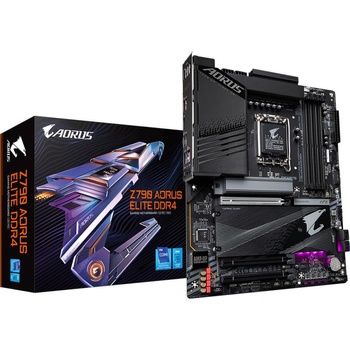

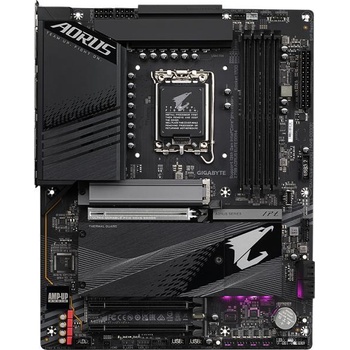

GIGABYTE Z790 AORUS ELITE DDR4

Model:Z790 A Elite DDR4CPU socket:LGA1700Processor family:Intel Pentium
Intel Core
Intel CeleronIntegrated CPU:NoChipset manufacturer:IntelChipset type:Intel Z790 Express ChipsetMemory type:DDR4Number of DDR4 slots:4Memory bus frequency:4600 MHz
4500 MHz
4700 MHz
4800 MHz
4300 MHz
4400 MHz
4266 MHz
2666 MHz
2800 MHz
2933 MHz
3000 MHz
3200 MHz
3300 MHz
3333 MHz
3400 MHz
3466 MHz
3600 MHz
3666 MHz
3733 MHz
3800 MHz
3866 MHz
4000 MHz
4133 MHz
4933 MHz
5000 MHz
5133 MHz
2400 MHz
5333 MHz
2133 MHzMax memory size:128 GBExpansion slots:1 x PCIe 5.0 x 16
1 x PCIe 4.0 x 16
1 x PCIe 3.0 x 16Max. number of SATA devices:4Max. number of ATA devices:0RAID:YesDetailed data on disk/drive interfaces:CPU:

• 1 x PCI Express x16 slot, supporting PCIe 5.0 and operating at x16 (PCIEX16).

If installing a single graphics card on a PCI Express slot, ensure that the card is connected to a PCIEX16 slot for optimum performance. Chipset:

• 1 x PCI Express x16 slot, supporting PCIe 4.0 and operating in x4 mode (PCIEX4_1)
• 1 x PCI Express x16 slot, which supports PCIe 3.0 and operates at x4 (PCIEX4_2)

Graphics:

• Integrated graphics processor supports Intel HD graphics
• 1 x HDMI port supporting a maximum resolution of 4096x2160 at 60 Hz
• Supports HDMI 2.0 and HDCP 2.3 versions.

Sound card:

• Realtek audio codec
• High Definition Audio support
• Number of audio channels 2/4/5.1/7.1
• Support for S/PDIF Out

Network interface:1 x 10/100/1000/2500 Mbit/sNetwork interface:Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)USB ports at back panel:10USB ports on motherboard:7Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports:5Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports:4FireWire (IEEE 1394):NoCOM connector / port:NoLPT connector / port:NoExternal connectors:2 x USB 3.1
1 x RJ-45
1 x S/PDIF
4 x USB 2.0
3 x USB 3.0
1 x MIC
1 x Line Out
1 x USB 3.1 Type-C
1 x HDMIOnboard connectors:1 x Reset button
1 x 4pin CPU fan
1 x 4pin CPU/Water Pump Fan Connector
2 x 8pin 12V
1 x 24pin ATX zasilanie
4 x M. 2
4 x SATA III 6Gb/s
2 x USB 2.0/1.1 header
1 x USB 3.0 header
1 x USB C
2 x Thunderbolt
1 x TPM header
1 x Front panel audio header
1 x Clear CMOS button
1 x System panel header
1 x Q-Flash Plus buttonBIOS:

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form factor:ATXDimensions:30.5 x 24.4cmSupported operating systems:Windows 10
Windows 11
