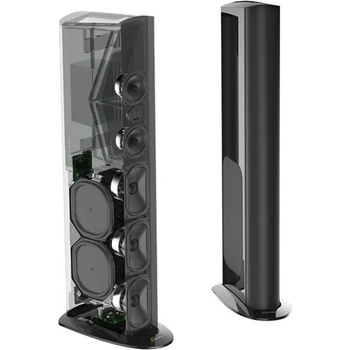

GoldenEar Technology Triton Reference (x2)

GoldenEar Triton Reference

The Triton Reference is the evolution of all we’ve learned so far, taken to a stunning level of sonic performance and sophisticated visual design. All the components are specifically developed for use in the Reference, including the fully-balanced and the powerful subwoofer amplifier and 56-bit DSP control unit.



The 6˝ upper/bass/midrange drivers incorporate a low-mass voice coil and cone with unique low-mass bonding to the butyl rubber surround for improved transient response. The 6˝x10˝ active low-frequency drivers for the built-in powered subwoofers have 40% more surface area than the active drivers used in other Tritons. The Reference High-Velocity Folded-Ribbon tweeter incorporates 50% more rare-earth neodymium magnet material than do our non-Reference HVFR tweeters, for improved transient response and higher efficiency. The four inertially balanced 10.5˝x 9.5˝ side-mounted (two on each side), planar back-wave-driven radiators are similar to those used in the SuperSub X, but have been retooled to allow for even greater excursion.



Specifications

Driver Complement

One Reference High-Velocity Folded Ribbon AMT Tweeter

Two 6" High-Definition Cast-Basket Reference Mid/Bass Drivers

Three 6" x 10" Long-Throw Quadratic Reference Subwoofer Bass Drivers

Four 9.5" x 10.5" Quadratic Planar Back-Wave-Driven Radiators

Passive Radiator Surface Area 66.77in2 (430.79cm2)Efficiency 93dB 1W/1M @ 4 (2.83V/1M)Frequency Response 26Hz – 25kHz typical (-6dB on axis @ 26Hz, anechoic bass response)Nominal Impedance 4Recommended Amplification 20 – 750WpcBuilt-In Subwoofer Power Amplification 1500W peak/750W RMS, DSP-ControlledDimensions Tower: 9.1" (23.36 cm) W x 19.4" (47.6 cm) D x 58" (147.27 cm) H (with base, no spikes)
