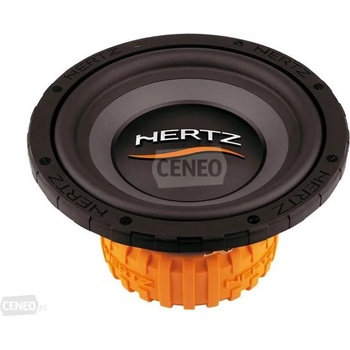

Hertz ES 200

Energy ES subwoofers were designed to work best when used in small enclosures. However, their electro-acoustic parameters are optimised for use in many different enclosure types; both in terms of typology (sealed box, reflex, bandpass, etc. ) and in size, insuring extraordinary versatility and performance. The use of a long excursion mobile voice coil and high flux density double magnet have created subwoofers that can stand very high power with outstanding musicality and bursting dynamics. The special anti-scratch finish and butyl rubber rings offer protection and an aggressive look.

• Component - Subwoofer
• Size - 200 mm (8)
• Power Handling continuous - peak 400(Watt)continuous program 200(Watt)
• Impedance - 4 Ohm
• Frequency response - 30/400 Hz
• Sensitivity - 87 dB/SPL
• Outer diameter - 216 mm
• Mounting hole diameter - 181 mm
• Magnet size - 120 mm
• Total depth - 121 mm
• Mounting depth - 106 mm
• Total driver displacement - 0.9 lit
• Weight of one component - 3,680 kg
• Voice coil diameter - 50 mm
• Magnet - Double magnet, High density flux ferrite
• Cone - Water repellent, pressed paper cone
• Xmech* - 14,5 mm

*Xmech* maximum mechanic excursion: it indicates the motion rangein the speaker linear functioning area, in both ways.
