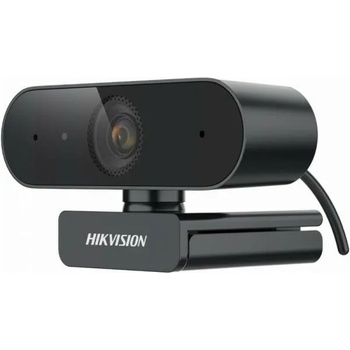

Hikvision DS-U04P

4 MP CMOS
High quality imaging with 2560 × 1440 resolution
Min. illumination: 0.1 Lux @ (F1.2, AGC ON)
AGC for self-adaptive brightness
Built-in microphone with clear sound
Type A interface, supporting USB 2.0 protocol. Plug-and-play, no need to install driver software
Support auto focus

Specifications:
Camera
Image Sensor4 MP CMOS
Signal SystemPAL/NTSC
Resolution2560 (H) × 1440 (V)
Frame Rate

MJPG:

2560 × 1440 @ 30 fps/25 fps

1920 × 1080 @ 30 fps/25 fps

1280 × 960 @ 30 fps/25 fps

1280 × 720 @ 30 fps/25 fps

640 × 480 @ 30 fps/25 fps

640 × 360 @ 30 fps/25 fps

YUV:

1920 × 1080 @ 5 fps

1280 × 960 @ 5 fps

1280 × 720 @ 10 fps

640 × 480 @ 30 fps/25 fps

640 × 360@30 fps/25 fps
Min. Illumination0.1 Lux @ (F1.2, AGC ON)
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens3.6 mm fixed focal lens
Field of Viewhorizontal FOV: 80°, vertical FOV: 50°, diagonal FOV: 88°
Lens MountM8
Day & Night24/7 Color Imaging
Angle Adjustmentpan: 360°; tilt: -15° to 15°; ratation: 0°
Cable Length1.5 m

Lens
Depth of Field10 cm to ∞

Audio
Audio Sampling Rate16 kHz

Interface
Video OutputUSB 2.0
Audio InBuilt-in mic
Operating System

Recommended systems

Windows 7/8/10/11 (resolution higher than 1080P is only available in Windows 8.1 and above version)

Android 8.1 and above version

Linux 4.14 and above version

macOS 10.12 and above version

Chrome OS

General
Operating Conditions-10 °C to 45 °C, Humidity: 90% or less (non-condensing)
Power SupplyDC5 V ± 5% (USB)
ConsumptionMax. 1.6 W
