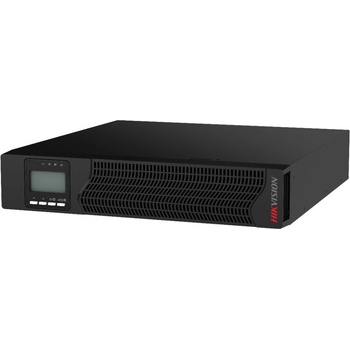

Hikvision DS-UPS02K48-R/TJS 2000VA

DS-UPS02K48-R/TJS

• Double conversion on-line design with input power factor correction (PFC) technology, achieving an input power factor of up to 0.99.
• Digital control system for enhanced stability and reliability.
• ECO operation mode for improved energy efficiency and reduced user costs.
• Three-stage charging: constant current charging, constant voltage charging, and floating charging stages are intelligently managed.
• Wide voltage input and frequency range for stable operation with different electrical scenario, and suit with various fuel generators.
• Comprehensive protections including output overload, output short-circuit, over-temperature, battery under-voltage warning, battery over-charging protection, and power-on self-diagnostic function;





Category SpecificationPo wer UPS Capacity: 2000 VA / 1800 WInput Voltage Range: 110300Vac (176264Vac @ 100% load)  Frequency: 40~70Hz (50/60Hz Auto-Sensing)  Nominal Voltage: 208/220/230/240Vac  Phase: Single Phase  Power Factor: ≥0.99Output Output Frequency (Online): 4654Hz or 5664Hz  Output Frequency (Battery): (50/60 ±0.1%) Hz  Transfer Time (AC to Battery): 0ms  Transfer Time (Inverter to Bypass): 4ms (Typical)  Output Voltage: 208/220/230/240Vac  Power Factor: 0.9  Output Sockets: IEC panel / EU panel / UK panel / US panel Optional  Crest Factor: 3:1  Harmonic Distortion (THDv): ≤3% (Linear load), ≤5% (Non-linear load)  Output Waveform: Pure SinewaveBattery Type: Valve Regulated Lead Acid (VRLA)  Recharging Time: 4 hours (to 90% capacity)  Capacity: 12V / 9Ah  Number of Batteries: 4  DC System Voltage: 48V  Max Charging Current: 1A  Expandable Runtime: Yes, External battery pack: DS-UPSB0948B-R/TJCIndicatorAlarm : Battery mode / Battery low voltage / Overload / Fault  LCD Display: Input voltage, Input frequency, Output voltage, Output frequency, Load %, Battery voltage, Inner temp, Remaining battery backup timeEfficiency AC Mode: 91%  Battery Mode: 87%Environment Operating Temperature: 0°C~40°C  Storage Temperature: -25°C~55°C  Humidity: 2095% RH @ 040°C (Non-condensing)  Altitude: 1500m)  Noise Level:
