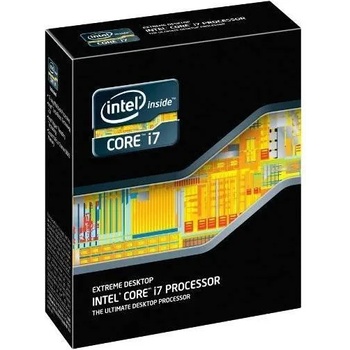

Intel Core i7-3970X Extreme Edition 3.5GHz LGA2011 Box

Intel® Core i7-3970X Processor Extreme Edition
(15M Cache, 3.50 GHz)

Processor Number - i7-3970X
# of Cores - 6
# of Threads - 12
Clock Speed - 3.5 GHz
Max Turbo Frequency - 4 GHz
Intel® Smart Cache - 15 MB
Bus/Core Ratio - 35
DMI - 5 GT/s
Instruction Set - 64-bit
Instruction Set Extensions - SSE4.2, AVX
Embedded Options Available - No
Lithography - 32 nm
Max TDP - 150 W
VID Voltage Range - 0.6V-1.35V

Memory Specifications

Max Memory Size (dependent on memory type) - 64 GB
Memory Types - DDR3-1066/1333/1600
# of Memory Channels - 4
Max Memory Bandwidth - 51.2 GB/s
ECC Memory Supported - No

Graphics Specifications

Integrated Graphics - No

Expansion Options

PCI Express Revision - 2.0
# of PCI Express Lanes - 40

Package Specifications

Max CPU Configuration - 1
TCASE - 66.8°C
Package Size - 52.5mm x 45.0mm
Sockets Supported - FCLGA2011
Low Halogen Options Available - See MDDS

Advanced Technologies

Intel® Turbo Boost Technology - 2.0
Intel® vPro Technology - No
Intel® Hyper-Threading Technology - Yes
Intel® Virtualization Technology (VT-x) - Yes
Intel® Virtualization Technology for Directed I/O (VT-d) - Yes
Intel® Trusted Execution Technology - No
AES New Instructions - Yes
Intel® 64 - Yes
Idle States - Yes
Enhanced Intel SpeedStep® Technology - Yes
Thermal Monitoring Technologies - Yes
Execute Disable Bit - Yes
Intel® VT-x with Extended Page Tables (EPT) - Yes
