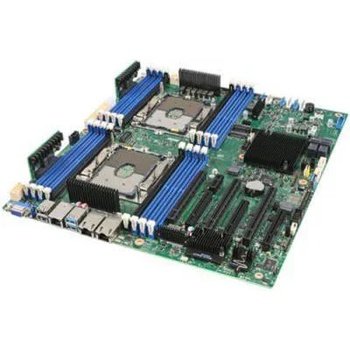

Intel S2600STBR

Intel S2600STBR

Essentials
Product Collection
Intel® Server Board S2600ST Family

Code Name
Products formerly Sawtooth

Extended Warranty Available for Purchase (Select Countries)
Yes

Additional Extended Warranty Details
Dual Processor Board Extended Warranty

# of QPI Links
2

Compatible Product Series
2nd Generation Intel® Xeon® Scalable Processors

Supported Operating Systems
Windows Server 2019*, Windows Server 2016*, Red Hat Enterprise Linux 7.6*, Red Hat Enterprise Linux 7.5*, SUSE Linux Enterprise Server 15*, SUSE Linux Enterprise Server 12 SP4*, Ubuntu*, VMware*

Board Form Factor
SSI EEB (12 x 13 in)

Chassis Form Factor
Rack or Pedestal

Socket
Socket P

Integrated Systems Available
No

Integrated BMC with IPMI
IPMI 2.0 & Redfish

Rack-Friendly Board
Yes

TDP
205 W

Included Items
(1) Intel® Server Board S2600STBR

(2) SATA cables 880.00mm

(1) IO shield

(1) Protective insulator

(1) Configuration label (sticker to be added to chassis)

Board Chipset
Intel® C624 Chipset

Target Market
Small and Medium Business

Off Roadmap
No

Supplemental Information
Embedded Options Available
No

Datasheet
View now

Description
A standard form factor server board supporting two 2nd Generation Intel® Xeon® Scalable Processors, up to 205 W TDP, 16 DIMMs, and Dual 10GBase-T ports.

Additional Information URL
View now

Memory Specifications
Max Memory Size (dependent on memory type)
2 TB

Memory Types
DDR4 ECC RDIMM/LRDIMM 2133/2400/2666/2933

Max # of Memory Channels
16

Max # of DIMMs
16

ECC Memory Supported ‡
Yes

Processor Graphics
Integrated Graphics ‡
No

Graphics Output
VGA

Expansion Options
Max # of PCI Express Lanes
96

PCI Express Revision
3.0

PCIe x8 Gen 3
3

PCIe x16 Gen 3
3

PCIe OCuLink Connectors (NVMe support)
4

I/O Specifications
# of USB Ports
7

USB Revision
2.0 & 3.0

Total # of SATA Ports
12

RAID Configuration
SW RAID 0/1/10 (5 optional)

# of Serial Ports
1

# of LAN Ports
2

Integrated LAN
(Optional) two 10 Gb SFP+ connectors

Package Specifications
Max CPU Configuration
2

Advanced Technologies
Intel® Optane Memory Supported ‡
No

Intel® Virtualization Technology for Directed I/O (VT-d) ‡
Yes

Intel® Remote Management Module Support
Yes

Intel® Node Manager
Yes

Intel® Transparent Supply Chain
TPM Version
2.0 (optional)

Security & Reliability
Intel® AES New Instructions
Yes

Intel® Trusted Execution Technology ‡
Yes
