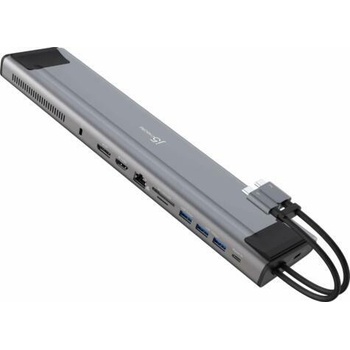

j5create JCD552-N

Increase your productivity with the M. 2 NVMe USB-C Gen 2 Docking Station, transforming your Thunderbolt 3 or USB-C compatible laptop into a dual 4K workstation with up to 10 Gbps. This high-performance dock features a M. 2 NVMe/SATA PCIe SSD Slot to expand your internal storage space, three SuperSpeed USB 10 Gbps ports (one USB-C and two USB Type-A), a Gigabit Ethernet port, SD & microSD memory card reader/writer, and a USB Type-A 5 Gbps port. This USB-C Gen 2 docking station supports 100W Power Delivery pass-through to power and charge your laptop, while powering all connected devices. With the built-in PCIe M. 2 SSD enclosure and extra storage you can access through an SD and microSD card, this is a must-have for creative professionals using a Mac. Dual 4K Monitor SetupSupports up to dual 4K @ 60 Hz monitors, allowing resource-demanding applications to run on independent displays without affecting system performance*Dual displays via two USB-C ports supporting DP Alt Mode or a single 4K HDMI display with one USB-C port supporting DP Alt ModeEnhanced Data StorageBuilt-in M. 2 expansion SSD slot supports 2230, 2242, 2260, and 2280 M. 2 NVMe® SSD with ultra-fast read and write speedsHigh-Speed PerformanceConnect your latest and legacy devices with three SuperSpeed USB 10 Gbps ports (1 USB-C® and 2 USB Type-A) and a SuperSpeed USB 5 Gbps port100W Power Delivery Pass-ThroughUse with a USB-C power adapter for the added ability to charge your laptop and power connected peripheralsDetachable Magnetic ConnectorsIts flexible design and universal USB-C connectors (Thunderbolt 3 compatible) make the docking station compatible with a wide range of devices and operating systemsFlexible Display ConnectionsDisplayPort alternate mode allows you to connect two 4K 60 Hz displays via HDMI and DisplayPort or add a single 4K HDMI display when the docking station is connected to only one USB-C hostAnti-Theft ProtectionSecurity slot to prevent equipment theft in a wide range of business or institutional environments. Ideal Accessory for MacBook Pro/Macbook AirGreat for working with graphics-intensive images and video editing

audio supported Yes
host connector 2 - USB-C® Male
network interface RJ45 (Gigabit Ethernet)
ports
1 - M. 2 NVMe®/SATA slot (2230,2242, 2260,2280)
1 - USB-C® 3.2 Gen 2
1 - USB-C® Power Delivery 3.0
2 - USB Type-A 3.2 Gen 2
1 - USB Type-A 3.2 Gen 1
1 - 4K HDMI
1 - 4K DisplayPort
1 - SD & microSD 3.0 memory card reader/writer
1 - RJ45 Gigabit Ethernet
1 - Security Lock Slot

power source Bus-powered
video output
1 - HDMI Female
1 - DisplayPort Female

audio channel 2.1 via HDMI/DisplayPort
compatible networks 10/100/1000 Mbps
displays supported 2
max data transfer rate 10 Gbps
M. 2 slot - Write: 900 MB/s, Read: 925 MB/s
max display refresh rate 60 Hz
max display resolution 3840 x 2160

input current 5A
input voltage 20V
output current 5A
output voltage 20V
power consumption ≤ 600 mA
power delivery Up to 100W via USB-C®

cable length 0.6 in. (15 cm)
color Grey & Black
enclosure type Aluminum
operating humidity < 85% non-condensing
operating temperature 32 to 118°F (0 to 48°C)
product depth 12.5 in. (318 mm)
product height 1.02 in. (26 mm)
product weight 0.83 lbs. (378g)
product width 3.14 in. (80 mm)
storage humidity < 85% non-condensing
storage temperature 14 to 149°F (-10 to 65°C)
