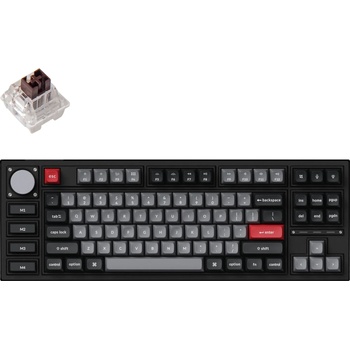

Keychron Q3 Pro Carbon Black TKL K Brown Switch (Q3P-M3)





Keychron Q3  Pro

Meet the Keychron Q3 Pro, a groundbreaking full metal QMK wireless custom mechanical keyboard. Along with our many premium designs, including double-gasket design, PBT keycaps, screw-in stabs, etc. , it will deliver you an unprecedented typing experience!





Q3 Pro Special Edition

The Special Edition provides a unique TKL layout with upgraded designs on an Aluminum knob, extra customizable keys on the left, and more delicate details for your elevated efficiency!





Wireless and Wired

An excellent solution for multitasking. You can connect the Q3 Pro with up to 3 devices wirelessly via its stable Broadcom Bluetooth 5.1 for seamless multitasking across your laptop, phone, and tablet. Switch among them swiftly, and it’s fully compatible with both Mac and Windows. A reliable USB Type-C wired connection is also available when you need it.





A Refined Piece Of Metal Art

The entire metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make this solid metal piece of art that is the Q3 Pro.





Easy Assemble

We designed every component to be able to assemble easily so you can customize and adjust each component with ease to create your ultimate typing experience.

    Double-Gasket Design

The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the acoustic resonance between the metals and reduce the noise of the impacted metals.

Experience the next level of key sounds and comfort with our gasket mount design together with a flexible PC (Polycarbonate) plate.  This design combination allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.

An Epic Core Inside The Keyboard

A powerful ultra-low-power ARM Cortex-M4 32-bit STM32L432 chip (MCU) equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box on type-c wired mode (90 Hz on wireless mode), which makes the latency hardly noticeable even in competitive games.

KSA Double-Shot PBT Keycaps

To further fine-tune your typing experience, we designed our unique Keychron spherical-angle (KSA profile) double-shot keycap set with premium non-backlight shine through PBT material, that is oil-resistant and durable for long-term use.

Suitable for All Devices

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Q3 Pro comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.





Specs

  Q3 ProWidth 137 mmLength 365.1 mmFront Height 19.7 mm (without keycaps)Back Height 32.6 mm (without keycaps)Angle 5.2°Weight 1762 ± 10 g (Fully Assembled version)Feet Height 2.4 mmSwitch Keychron K Pro (Fully Assembled version)Keycap KSA double-shot PBT keycaps, not shine-through (Fully Assembled version)Plate Material PCBody Material Full CNC machined aluminum
 MCU Ultra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash)N-Key Rollover (NKRO) Yes for both wireless and wired modesPolling Rate 1000 Hz (wired) / 90 Hz (wireless)Stabilizer Screw-in PCB stabilizer
 Backlight South-facing RGB LEDHot-swappable Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX and Kailh, etc.
 Operating Environment -10 to 50℃Battery 4000 mAh Rechargeable li-polymer batteryBT Working Time (Backlit off) Up to 300 hours (Lab test result may vary by actual use)
 BT Working Time (RGB) Up to 100 hours (Lowest brightness)Bluetooth Version 5.1
 Compatible System macOS/Windows/LinuxConnectivity Bluetooth / Type-C wiredBluetooth Device Name Keychron Q3 Pro
