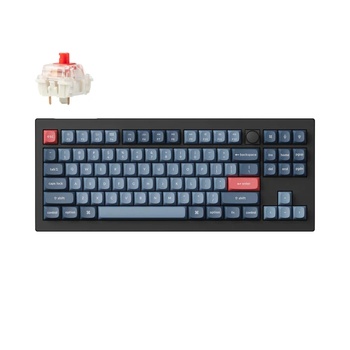

Keychron V3 Max QMK Carbon Black Gateron Jupiter Red Switch (V3M-D1)



Keychron V3 Max QMK/VIA

Gateron Jupiter Red Switches

V3M-D1







The V3 Max is a QMK custom mechanical keyboard with 2.4 GHz wireless and Bluetooth 5.1 connection. It has a classic TKL layout and offers a gasket mount design, sound-absorbing foam, double-shot PBT keycaps, and more. The V3 Max is designed for a personalized experience and enhanced typing comfort.







All-around customizable keyboard

To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every parts the way you want.















2.4 GHz & Bluetooth Connection

Experience peak gaming performance on the fly with the 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the V3 Max via Bluetooth 5.1 to three devices.







Dual Receivers

For a better 2.4 GHz wireless experience, the V3 Max comes with Type-C and Type-A receivers. Enjoy the quick plug-and-play time. Or, put them away in the keyboard magnetic storage slot at the top right corner.









An Epic Core Inside The Keyboard

A powerful ARM architecture MCU equipped with 256K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box, which makes the latency hardly noticeable even in competitive games.







Width 149 mmLength 367.8 mmFront Height 23.6 mm  (without keycaps)Back Height 32.5 mm (without keycaps)Feet Height 2 mmAngle 4° / 7° / 10°Weight 696 ± 10 g (Fully Assembled Version)Body Material ABS PlasticPlate Material PCKeycaps (Fully Assembled Version) Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)Switches Gateron Jupiter (Fully Assembled Version)Hot-swappable  Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX, Kailh, etc. Stabilizer Screw-in PCB stabsCable Type-C cable + Type-A to Type-C adapterMCU ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
 Charging Port USB Type-COperating Environment -10℃ to 50℃Polling Rate 1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode)
 Mount Style Gasket Mount DesignBacklight South-facing RGB LEDN-Key Rollover (NKRO)  Yes for both wireless and wired modesCompatible System  Windows/macOS/LinuxBluetooth Version  5.1Bluetooth Device Name Keychron V3 MaxBattery 4000 mAh Rechargeable li-polymer batteryCharging Time  Around 5 hoursWireless Working Time (Backlit off)  Up to 225 hours (Lab test result may vary by actual use)Wireless Working Time (RGB)  Up to 100 hours (Lowest brightness)
