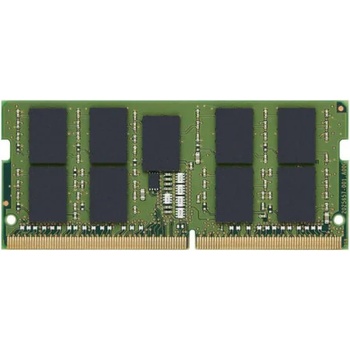

Kingston 32GB DDR4 2666MHz KSM26SED8/32MF

Доставка на този тип поръчки:
Продукта се поръчва специално за клиента, от склад извън България.
В зависимост от типа и теглото на продукта, е възможно да бъде изискано предварителното му заплащане по банка, с карта или в брой в магазина.
Срока за доставка е 2-5 дни след получено потвърждение на поръчката.


SO KINGSTON 32GB 2666MT/s DDR4 ECC CL19 SODIMM 2Rx8 Micron F

DESCRIPTION Document No. 4810604A 07/21/22 Page 1 SPECIFICATIONS *See IDD Specifications (page 2) Continued >> kingston. com FEATURES Kingston's KSM26SED8/32MF is a 4G x 72-bit (32GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM) w/ parity, 2Rx8, ECC, memory module, based on eighteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 260-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows: Power Supply: VDD = 1.2V VDDQ = 1.2V VPP = 2.5V VDDSPD = 2.20V to 3.60V Functionality and operations comply with the DDR4 SDRAM datasheet 16 internal banks Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for the banks in the same or different bank group accesses are available Data transfer rates: PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600 Bi-Directional Differential Data Strobe 8 bit pre-fetch Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop) Supports ECC error correction and detection On-Die Termination (ODT) Temperature sensor with integrated SPD This product is in compliance with the RoHS directive. Per DRAM Addressability is supported Internal Vref DQ level generation is available Write CRC is supported at all speed grades CA parity (Command/Address Parity) mode is supported RoHS Compliant and Halogen-Free CL(IDD) Row Cycle Time (tRCmin) Refresh to Active/Refresh Command Time (tRFCmin) Row Active Time (tRASmin) Maximum Operating Power UL Rating Operating Temperature Storage Temperature 19 cycles 45.75ns(min. ) 350ns(min. ) 32ns(min. ) * 94 V - 0 0 o C to +85 o C -55 o C to +10
