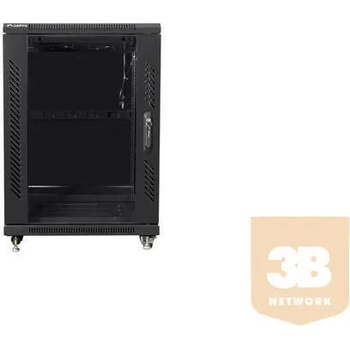

Lanberg FF01-6615-12B

Solid workmanship:
Standing for reliability and robustness, Lanberg FF01 series standing server racks are a guarantee of excellent quality. Designed with attention to every detail, our rack cabinets are distinguished by exceptional durability and precision workmanship, regardless of the application.

High-quality cold-rolled steel, from which the elements of our data communication cabinets are made, ensures not only durability, but also precision and solidity of construction.

Each of our FF01 series server cabinets is characterized by exceptional solidity of workmanship, which is the result of an advanced manufacturing process , providing excellent results both aesthetically and functionally.

Efficient cooling:
Standing server racks in the FF01 series from Lanberg are the ideal solution for those looking for performance even in the most demanding temperature conditions. Our racks combine optimal performance with functionality, aesthetics and security.

By incorporating a vent at the top of the design, each of our racks provides excellent airflow, resulting in effective cooling. This element, combined with the built-in fans, guarantees temperature control inside the cabinet, which is crucial for maintaining optimal operating conditions for your equipment.

The design of our FF01 server cabinets has been thought out to ensure the highest cooling efficiency. This translates into long-lasting and trouble-free operation of your equipment, no matter what its requirements are.

The design of our server cabinets has been thoughtfully designed to ensure the best possible performance.

Specifications

Type of cabinet
Free standing

Size
19"

ICT height
15 U

Assembly type
Self-assembly

Working depth
520 mm

Front door type
Temper glass

Rear door type
Metal

Door type
Single-leaf

Maximum front door opening angle
215 °

Maximum static load
800 kg

Slot amount for fans
2

Number of vertical rails
4

Thermostat
No

LCD panel
No

Colour
Black

RAL color
RAL9004

Weatherproof rating
IP20

Front door thickness
5 mm

Rear door thickness
1 mm

Upper & lower panel thickness
1.2 mm

Side panel thickness
1.2 mm

Mounting rails thickness
2 mm

Frame thickness
1.2 mm

Other elements sheet thickness
1.2 mm

Depth
600 mm

Width
600 mm

Height
848 mm

Height without casters
769 mm

Weight
45.5 kg

Standard
ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, ETSI, IEC297-2:1982

Grounding Details
Back door, Frame, Front door
