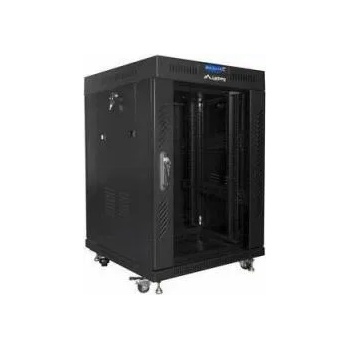

Lanberg FF01-6615-12BL

Solid workmanship:
Focusing on reliability and robustness, Lanberg's FF01 series standing server racks are a guarantee of excellent quality. Designed with attention to every detail, our rack cabinets are distinguished by exceptional durability and precision workmanship, regardless of the application.

The high-quality cold-rolled steel from which the components of our ICT racks are made ensures not only durability, but also precision and robustness of construction.

Each of our server cabinets in the FF01 series is characterized by exceptional solidity of workmanship, which is the result of an advanced manufacturing process , providing excellent results both aesthetically and functionally.

Efficient cooling:
The FF01 series of standalone server racks from Lanberg is the ideal solution for those looking for performance even in the most demanding temperature conditions. Our rack cabinets combine optimal performance with functionality, aesthetics and security.

Thanks to the ventilation hole at the top of the design, each of our cabinets provides excellent airflow, which translates into effective cooling. This element, combined with built-in fans, guarantees temperature control inside the cabinet, which is key to maintaining optimal operating conditions for your equipment.

The design of our FF01 server cabinets has been thoughtfully considered to ensure the highest cooling efficiency. This translates into long-lasting and trouble-free operation of your equipment, regardless of its requirements.

Specifications

Type of cabinet
Free standing

Size
19"

ICT height
15 U

Assembly type
Self-assembly

Working depth
490 mm

Front door type
Temper glass

Rear door type
Metal

Door type
Single-leaf

Maximum front door opening angle
180 °

Maximum static load
1200 kg

Slot amount for fans
2

Number of vertical rails
4

Thermostat
Yes

LCD panel
Yes

Colour
Gray

RAL color
RAL7035

Weatherproof rating
IP20

Front door thickness
5 mm

Rear door thickness
1 mm

Upper & lower panel thickness
1.5 mm

Side panel thickness
1.2 mm

Mounting rails thickness
2 mm

Frame thickness
1.5 mm

Other elements sheet thickness
1.3 mm

Depth
600 mm

Width
600 mm

Height
922 mm

Height without casters
819 mm

Weight
60 kg

Standard
ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, ETSI, IEC297-2:1982

Grounding Details
Back door, Frame, Front door
