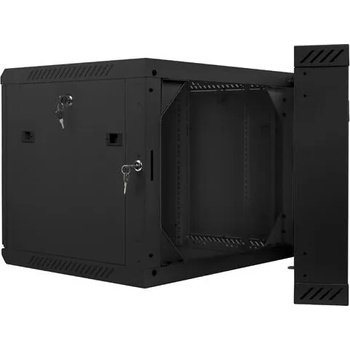

Lanberg WF02-6609-10B

Lanberg WF02-6609-10B

Features:
- Manufacturer: Lanberg,
- Manufacturer code: WF02-6609-10B,
- Cabinet type: Wall mount,
- Body color: Black RAL9004,
- Height: 9U,
- Cabinet dimensions (W x D x H): 600x600x507.3 mm,
- Height (top panel - bottom panel): 500 mm,
- Height (top panel - ground including screws): 507.3 mm,
- Packaging dimensions (W x D x H): 51.5x61x33 cm,
- Spacing between rack rails: 450 mm,
- Spacing between holes in rack rails: 475 mm,
- Internal spacing between rack rails: 500 mm,
- Loading capacity: max. 60 KG,
- Degree of protection: IP20,
- Doors type: Tempered glass,
- Standard: ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1 & PART7, ETSI,
- Material: High grade cold rolled steel, powder coated,
- Available fan: Yes, 120mm, 110V or 220V,
- Glass thickness: 5.0 mm,
- Sheet thickness: vertical mounting rails - 1,50 mm; mounting profile - 1,50 mm; others - 1,20 mm; top & bottom & side panel - 1,00 mm,
- Cable entry panel: Top, Bottom,
- Packaging includes: Accessory bag, earth kit, front and rear door lock, two side panels with locks, 10 cage nuts M6.

Additional accessories:
- AK-1001-B – Lanberg's fixed shelf for wall mount cabinets
- AK-1004-B – Lanberg's front and rear fixed shelf for wall-mount and free-standing cabinets
- AK-1008-B – Lanberg's support board for wall-mount and free-standing cabinets
- AK-1101-B – Lanberg's brush panel 1U
- AK-1102-B – Lanberg's brush panel for cable entry panel
- AK-1201-B – Lanberg's cable management type A
- AK-1202-B – Lanberg's cable management type B
- AK-1302-S – Lanberg's 50 cage nuts M6
- AK-1401-B – Lanberg's blank panel 1U
- AK-1402-B – Lanberg's blank panel 2U
- AK-1501-B – Lanberg's 230V fan for wall-mount cabinets
