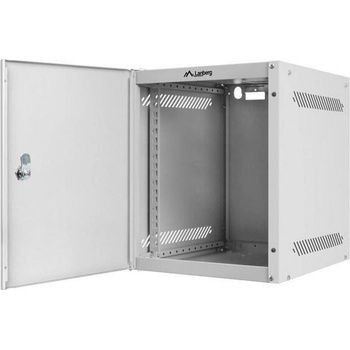

Lanberg WF10-2306-00S

Efficient cooling:
The WF10 series of Lanberg server cabinets is also dedicated to those who are looking for solutions for use in demanding temperature conditions. Our cabinets allow you to achieve optimum performance without sacrificing functionality, aesthetics and security.

Thanks to the ventilation hole in the ceiling panel, we provide excellent airflow and effective cooling. We offer users even greater control over the temperature inside the cabinet, which is key to maintaining optimal operating conditions for equipment

Specifications

Type of cabinet
Wall mount

Size
10"

ICT height
6 U

Assembly type
Self-assembly

Working depth
238 mm

Front door type
Metal

Door type
Single-leaf

Maximum static load
20 kg

Slot amount for fans
1

Number of vertical rails
2

Thermostat
No

LCD panel
No

Colour
Gray

RAL color
RAL7035

Weatherproof rating
IP20

Front door thickness
1 mm

Upper & lower panel thickness
1 mm

Side panel thickness
1 mm

Mounting rails thickness
1.4 mm

Frame thickness
1.1 mm

Other elements sheet thickness
1.1 mm

Depth
310 mm

Width
280 mm

Height
336 mm

Weight
5.45 kg

Standard
ANSI/EIA RS-310-D, DIN 41491/PART 1, IEC297-2:1982

Grounding Details
Bottom panel, Front door
