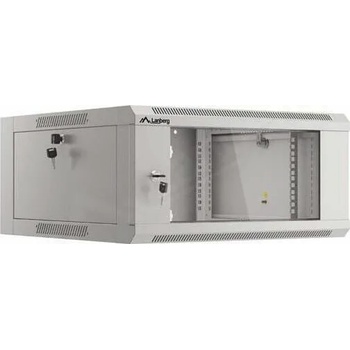

Lanberg WFFA-5604-10S

EFFICIENT VENTILLATION - FOUR VENTS IN THE BOTTOM PANEL:
The WFFA series is also dedicated to those looking for cabinets capable of coping with more extreme In-Rack conditions without sacrificing functionality, aesthetics, and safety.

The use of 4 vents in both the top and bottom panels provides much better airflow and cooling, while the user gains even more control over the cabinet's temperature circulation.

Specifications

Type of cabinet
Wall mount

Size
19"

ICT height
4 U

Assembly type
Self-assembly

Working depth
411 mm

Front door type
Temper glass

Door type
Single-leaf

Maximum static load
60 kg

Slot amount for fans
8

Number of vertical rails
4

Thermostat
No

LCD panel
No

Colour
Gray

RAL color
RAL7035

Weatherproof rating
IP20

Front door thickness
5 mm

Upper & lower panel thickness
1 mm

Side panel thickness
1 mm

Mounting rails thickness
1.2 mm

Frame thickness
1 mm

Other elements sheet thickness
1 mm

Depth
600 mm

Width
570 mm

Height
277 mm

Weight
17.5 kg

Standard
EIA/ECA-310-E, GB 15763.2-2005 (similar to EN 12150-1), IEC 60297-3-100:2008, IEC 60297-3-101:2004
