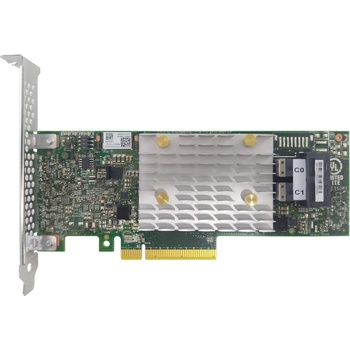

Lenovo ThinkSystem RAID 5350-8i PCIe 12Gb (4Y37A72482)

LENOVO ThinkSystem RAID 5350-8i PCIe 12Gb Adapter





Manufacturer
LENOVO

Manufacturer Part No
4Y37A72482



Marketing Description

The ThinkSystem RAID 5350-8i adapter is an entry-level 12 Gb SAS/SATA internal RAID adapter manufactured by Lenovo that offers a cost-effective RAID solution for small to medium business customers. This cacheless adapter supports RAID levels 0/1/10/5, and include support for Lenovo management tools.

Product Features

Robust environmental adaptabilityDesigned to operate in a wide range of humidity (20 - 80% non-condensing) and temperature (0°C to 55°C), ensuring reliability and performance in diverse operational conditions.
High-speed connectivityFeatures two internal 36-pin 4x Mini SAS HD (SFF-8643) connectors, supporting SATA 6 Gb/s and SAS 12 Gb/s interfaces for fast data transfer rates, enhancing storage performance and efficiency.
Advanced RAID supportOffers a variety of RAID levels including JBOD, RAID 0, RAID 1, RAID 10, and RAID 5, providing flexibility in data management and protection strategies to meet different business needs.
Comprehensive complianceMeets a wide array of standards including AS/NZS 3548, EN 55032, and FCC Part 15, among others, ensuring compatibility and safety across different regulatory environments.
Intelligent processor integrationPowered by an Adaptec SmartIOC 2100 processor, it delivers efficient processing power for handling demanding storage tasks, ensuring smooth and reliable data management.

General

Device Type
Storage controller - plug-in card - low profile

Host Bus
PCIe 3.0 x8

Storage Controller

Interface
SATA 6Gb/s / SAS 12Gb/s

Data Transfer Rate
12 Gbit/s

Channel Qty
8

RAID Level
RAID 0, RAID 1, RAID 5, RAID 10, JBOD

Processor
Adaptec SmartIOC 2100 PM8222

Expansion / Connectivity

Interfaces
2 x SATA 6Gb/s / SAS 12Gb/s - 4 x Mini SAS HD (SFF-8643) (internal)

Miscellaneous

Features
S. M. A. R. T. support

Compliant Standards
VCCI, EN55024, ICES-003 Class B, AS/NZS 3548, RoHS, KCC, FCC Part 15 A, FCC CFR47 Part 15 B, EN 55032, IEC/EN/UL 60950

Software / System Requirements

Software Included
Adaptec maxView Storage Manager

OS Required
Microsoft Windows Server 2016, Microsoft Windows Server 2019, Ubuntu 18.04 LTS, SUSE Linux Enterprise Server 12 SP5, Ubuntu 20.04 LTS, Red Hat Enterprise Linux 8.2, SUSE Linux Enterprise Server 15 SP2, VMware vSphere Hypervisor 6.7 (ESXi) Update 3, Red Hat Enterprise Linux 8.3, Red Hat Enterprise Linux 7.9, VMware vSphere Hypervisor 7.0 (ESXi) Update 2

Manufacturer Warranty

Service & Support
Limited warranty - 1 year

Dimensions & Weight

Depth
16.7 cm

Height
6.4 cm

Environmental Parameters

Min Operating Temperature
0 °C

Max Operating Temperature
55 °C

Humidity Range Operating
20 - 80% (non-condensing)

Compatibility Information

Designed For
Lenovo ThinkSystem SR630 V2 7Z70, 7Z71Lenovo ThinkSystem SR650 V2 7D15, 7Z72, 7Z73Lenovo ThinkSystem ST250 V2 7D8FLenovo ThinkSystem ST50 V2 7D8JLenovo ThinkSystem ST550 7X10

Technical data provided by third party. We assume no liability for errors within these data.
