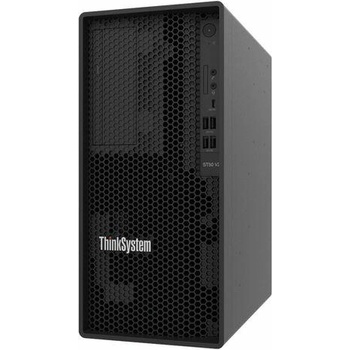

Lenovo ThinkSystem ST50 V2 7D8J100GEA

LENOVO ThinkSystem ST50 V2 Xeon E-2324G 4C 3.1GHz 65W 1x16GB 3200MHz UDIMM 2x960GB 5400Pro SATA SSD SW RAID 1x500W PSU noDVD 3YR
id="p46482471"> LENOVO ThinkSystem ST50 V2 Xeon E-2324G 4C 3.1GHz 65W 1x16GB 3200MHz UDIMM 2x960GB 5400Pro SATA SSD SW RAID 1x500W PSU noDVD 3YRManufacturer LENOVOManufacturer Part No 7D8J100GEAMarketing DescriptionThe ThinkSystem ST50 V2 offers enterprise-class reliability features such as error correcting code (ECC) memory, the onboard RAID controller, and enterprise-class hard drives and network adapters. The server has Intel Active Management Technology (AMT) built-in, along with support for industry-standard management tools. The ST50 V2 runs a wide range of server operating systems and is quiet enough and small enough to fit under or beside an office desk. Product Features

• Improved single-socket processor performance
• Up to four 3200 MHz DDR4 ECC UDIMMs provide speed and capacity of up to 64 GB
• Three PCIe slots for I/O expansion, one of which has a PCIe Gen4 interface to maximize I/O performance
• Support for an NVMe M. 2 drive for OS boot operations
• Up to three non-hot-swap (NHS) drive bays, two 3.5-inch and one 2.5-inch, supporting hard disk drives (HDDs) or solid-state drives (SSDs) provide flexible internal storage capacity

GeneralTypeServerProdu ct Form FactorTower - 5UEmbedded SecurityTrusted Platform Module (TPM 2.0) Security ChipServer Scalability1-wayInternal Bays Qty2LocalisationRegion: EMEAProcessor / ChipsetCPUIntel Xeon E-2324GClock Speed3.1 GHzMax Turbo Speed4.6 GHzNumber of CoresQuad-CoreCPU Qty1Max CPU Qty1CPU SocketLGA1200 SocketChipset TypeIntel C256Cache MemoryInstalled Size8 MBCache Per Processor8 MBRAMInstalled Size16 GB / 128 GB (max)TechnologyDDR4 SDRAM - ECCEffective Memory Speed3200 MHzRated Memory Speed3200 MHzForm FactorDIMM 288-pinSlots4 (Total) / 3 (empty)FeaturesUnbufferedConfiguration Features1 x 16 GBHard DriveTypeSSDCapacity2 x 960 GBInterface TypeSATA 6Gb/sStorage ControllerType1 x SATAController Interface TypeSATA 6Gb/sChannel Qty3Optical StorageTypeNo optical driveMonitorMonitor TypeNone. Graphics ControllerGraphics ProcessorIntel UHD Graphics P750 Shared Video Memory (UMA)Video InterfacesDisplayPortNetworkingEthernet ControllerIntel I219-LMData Link ProtocolEthernet, Fast Ethernet, Gigabit EthernetFeaturesWake on LAN (WoL), Teaming support, Intel Active Management Technology (AMT) 15Compliant StandardsDASH 1.1Expansion / ConnectivityBays1 (total) / 1 (free) x external 5.25"
2 (total) / 0 (free) x internal 3.5"Slots1 (total) / 1 (free) x PCIe 4.0 x16 - half-length, full-height
1 (total) / 1 (free) x PCIe 3.0 x1 - half-length, full-height
1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height (x4 mode)Interfaces1 x USB-C 3.2 Gen 2 (1 in front)
2 x USB 3.2 Gen 2 (2 in front)
6 x USB 3.2 Gen 1 (2 front, 4 rear)
2 x DisplayPort
1 x LAN (Gigabit Ethernet)
1 x serial
1 x audio line-out
1 x VGA (on supplied cable)MiscellaneousTheft/Intrusion ProtectionSecurity lock slot (cable lock sold separately), padlock loopSecurity Slot TypeKensington security slotCompliant StandardsTUV GS, BSMI, IEC 60950-1, GB 17625.1, VCCI Class A, GB 4943.1, INMETRO, NOM-019, EK1-ITB2000, UL 2819, AS/NZS CISPR 32 Class A, KN32 Class A, EN 62368-1, IEC 62368-1, EN 55032 Class A, CISPR 32 Class A, TP TC 004/2011, HJ 2507-2011, Energy-Related Products (ErP) Lot 9, TP EAC 037/2016, ANSI/UL 62368-1, ICES-003 issue 7 Class A, GB/T9254, CQC3135, CSA C22.2 No. 62368-1, CMIMPowerDevice TypePower supplyVoltage RequiredAC 100-240 V (50/60 Hz)Power Provided500 Watt80 PLUS Certification80 PLUS PlatinumEfficiency92%Operating System / SoftwareOS ProvidedNo operating systemManufacturer WarrantyService & SupportLimited warranty - 3 years - on-site - response time: next business dayDimensions & WeightWidth17 cmDepth31.6 cmHeight37.6 cmWeight9.4 kgDimensions & Weight (Shipping)Shipping Width28 cmShipping Depth42 cmShipping Height54 cmEnvironmental ParametersMin Operating Temperature10 °CMax Operating Temperature35 °CHumidity Range Operating8 - 80% Technical data provided by third party. We assume no liability for errors within these data.
