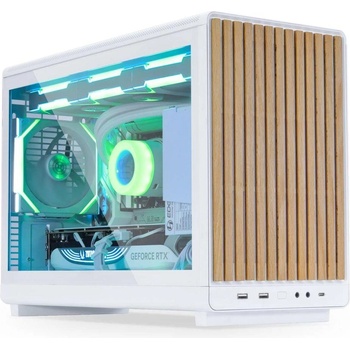

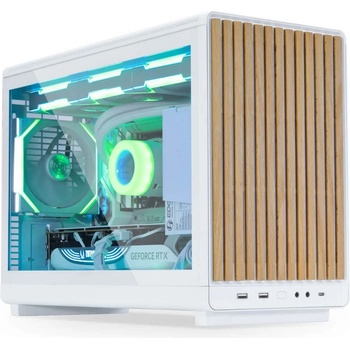

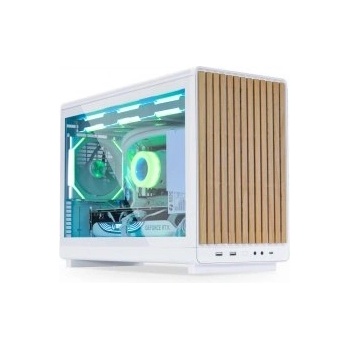

Lian Li A3 TG Wood Edition white

A3-mATX

• Minimalistic sleek design 26.3L micro form factor chassis
• Side and top panels are designed with steel mesh
• Accommodates M-ATX and ITX motherboard with 4 slots 415mm large GPU
• Supports up to 360 radiator and 10 x 120mm fans
• Supports ATX/SFX/SFX-L and LIAN LI Edge PSU that can be mounted sideways or frontways
• In collaboration with DAN Cases for the case design whereas manufactured and sold by LIAN LI.



WELL VENTILATED, MINIMALIST DESIGN
With three sides featuring minimalist mesh panels and a sleek front panel,
the A3-mATX combines functionality with style,
making it the perfect touch to your setup.



EFFORTLESS MODULARITY, STREAMLINED BUILDS
The toolless removal of all exterior panels and modular brackets provide easier access for installation and cable management. With a removable bottom dust filter, ensuring the system stays clean and efficient.









SEAMLESS CONNECTIVITY, STYLISH IO
With its front IO featuring essential ports and buttons, along with a sleek and stylish front panel design, the A3-mATX ensures seamless connectivity while showcasing on the desk.



Category SpecificationCa se Type MFF (Micro Form Factor)Dimensions (with feet) (D) 443 mm × (W) 194 mm × (H) 321.5 mmDimensions (without feet) (D) 443 mm × (W) 194 mm × (H) 306 mmCapacity 26.3 LMaterial Steel / 3 mm Tempered GlassMotherboard Support M-ATX / ITXPSU Support ATX / SFX / SFX-L (Max 220 mm)Fan Support Top: 3 × 120 mmSide: 3 × 120 mm or 2 × 140 mmBottom: 3 × 120 mmRear: 1 × 120 mmRadiator Support Top: 1 × 360 mm / 240 mmSide: 1 × 360 mm / 280 mm / 240 mmBottom: 1 × 240 mm (360 mm with fan at bottom)Drive Support Tray: 2 × 2.5 SSDBottom: 1 × 2.5 SSD or 1 × 3.5 HDDGPU Length Clearance Max 415 mmCPU Height Clearance Max 165 mmExpansion Slots 4I/O Ports 1 × Power Button2 × USB 3.0 Type-A1 × USB 3.1 Type-C1 × Mic1 × HD AudioDust Filters 1 x Bottom
