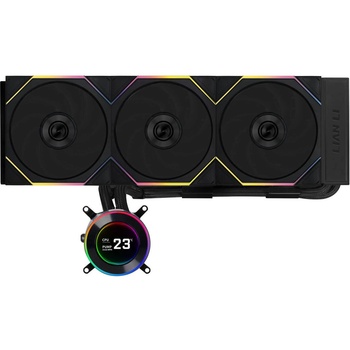

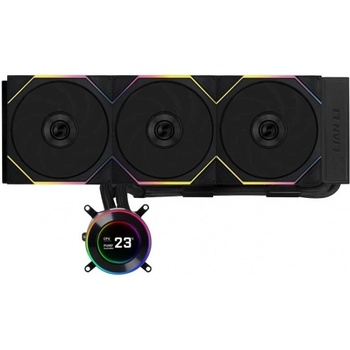

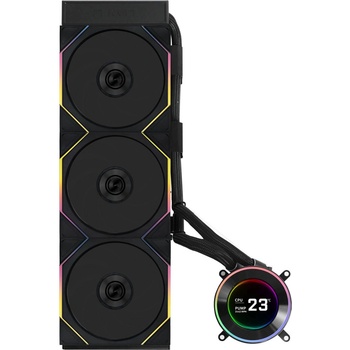

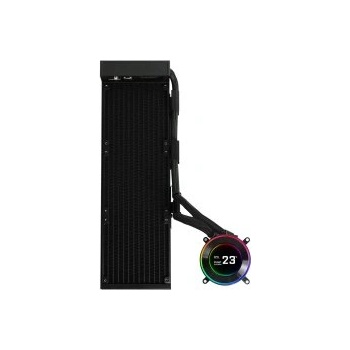

Lian Li Hydroshift II LCD-C 360TL (GHS2LCD36TB)

Lian Li HydroShift II LCD-C

Boldly Unique, Brilliantly Upgraded



Seamless interaction, complete control

Experience vibrant visuals on the 2.1″ IPS LCD, featuring a sharp 480×480 resolution and 500-nit brightness for clear display even in well-lit environments. A 60Hz refresh rate ensures smooth, fluid animations.

2.1 LCD screen

500-nit brightness

SRGB 24-bit true color

480×480 resolution

IPS panel

60Hz refresh rate



Minimalist aesthetics, maximum freedom

The innovative side-mounted tubing design routes the tubes along the edge of the radiator, significantly reducing visual clutter. Pump and USB cables are seamlessly hidden in the tubes’ woven sleeve that integrates into the radiator’s side for a nearly cable-free and tubeless look.



Additionally, the USB power and data cables are integrated directly into the cooling tubes, leaving the cap completely wire-free, making your computer’s interior more organized.



Pre-installed with three tube support brackets, the water cooling tubes are neatly concealed, while the exposed sections appear more organized, further enhancing the overall tidiness of the case interior.



Precision fit, effortless alignment

HydroShift II LCD-C is engineered with both aesthetics and flexibility in mind. Its innovative adjustable tubing design allows for precise alignment directly to the CPU, optimizing cable routing and creating a cleaner internal layout. The result is a sleek, streamlined build that adds refined character to any PC.

Note: Users can fine-tune the rightmost tube bracket at the 140mm position on the radiator mount.



Reduced dimensions without performance compromise

The radiator has been compactly redesigned to just 400 × 122 × 24mm: 3mm thinner, 3mm shorter, and 2.5mm narrower than the previous generation. This reduced footprint improves compatibility with mainstream PC cases, making installation easier while maintaining excellent thermal performance.



Offline Mode (No USB Connection Required)

Easily control the pump cap by rotating the transparent outer ring. A built-in sensor tracks real-time coolant temperature and pump speed, while turning the ring clockwise switches screen themes and counterclockwise adjusts lighting effects—offering seamless customization without the need for a USB connection.



Specifications



PUMP SPEED 2000-2500RPM±10％PUMP NOISE 28dBAPUMP HEAD DIMENSIONS 69 x 87 x 87mmSCREEN REFRESH RATE 60HzLCD PANEL 2.1 IPSSCREEN RESOLUTION 480 x 480SCREEN BRIGHTNESS 500nitRADIATOR DIMENSIONS 400 x 122 x 24mmRADIATOR MATERIAL Aluminum AlloyTUBING LENGTH 450/475mmFAN DIMENSIONS 124 x 120 x 28mmFAN SPEED 0，200-2600RPMSTATIC PRESSURE 3.97 H2oAIRFLOW 90.1 CFMNOISE LEVEL 33 dBABEARING TYPE Fluid Dynamic Bearing (FDB)SUPPORTED PLATFORMS intel：LGA1700 1851
AMD：AM4 AM5 (FDB)
