Logitech 986-000020

Dimensions

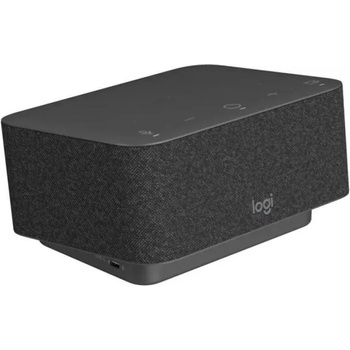

Logi Dock

Height: 84.8 mm
Width: 160 mm
Depth: 131.5 mm
Cable length: 1 m
Weight: 0.942 kg

Compatibility

Software Downloads

Download Logi Tune for convenient calendar integration, one-touch-to-join meeting experience and customization. 6Logi Tune desktop app required for calendar integration, which supports Office 365 and Google Calendar. Support may vary by video conferencing service provider. See pro support compatibility page for latest information.

Certifications

Microsoft Teams, Google Meet, Google Voice and Zoom

Technical Specifications

Speaker

Frequency Response: 60Hz-20KHz
Driver size: 55 mm
Support automatic audio switching 7Works with Zone Wireless (Plus) or Zone True Wireless

Microphones

Beamforming mic array with six mics
Frequency Response: 65Hz-8KHz

Docking Station

Docking interface: USB-C Alt Mode 8Logi Dock supports laptops that have implemented USB-C industry specifications. For USB-C functionality, laptops must support USB Power Delivery 2.0 (or greater) for power delivery of up to 100W, USB 3.1 Gen 2 (or greater) for data transfer and DisplayPort Alt mode for video output.
Power to system: Up to 100 Watt charging

Monitor ports

1 x HDMI v. 2.0 (Support up to 4K, i. e. 3840 x 2160 @60Hz HDR)
1 x DisplayPort 1.4 (Support up to 4K, i. e. 3840 x 2160 @60Hz HDR) 9See support page for compatibility updates.

Peripheral ports

2 x USB-A

1 x USB 3.1 Gen 1 (5Gbps) with 4.5W charging
1 x USB 3.1 Gen 1 (5Gbps) with 7.5W fast charging 10Port marked with lightning icon

3 x USB-C

2 x USB 3.1 Gen 1 (5 Gbps) with 4.5W charging
1 x USB 3.1 Gen 1 (5 Gbps) with 7.5W fast charging 11Port marked with lightning icon

1 x USB-C Upstream

Others

1 x Bluetooth Sync button
Bluetooth version: 5.1

1 x AC power (230W, 19.5V)
Security slot type: Kensington security slot

Compatible with

Windows 10 or later, macOS 11 or later, or Chrome based computer with Alt Mode
iOS or Android Bluetooth enabled devices
Available USB-C port
AC Power
