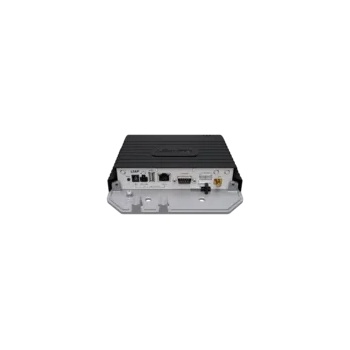

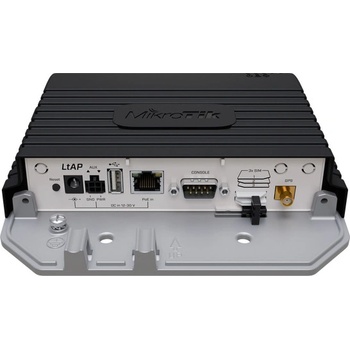

MikroTik LtAP-2HnD&R11e-LTE7

SpecificationsProduct codeLtAP-2HnD&R11e-LTE7Suggested price$169.00ArchitectureMMIPSCPUMT7621AT CPU core count2CPU nominal frequency880 MHzCPU Threads count4RouterOS license4Operating SystemRouterOS v7Size of RAM128 MBStorage size16 MBStorage typeFLASHMTBFApproximately 200'000 hours at 25CTested ambient temperature-40°C to 70°CPoweringNumber of DC inputs3 (DC jack, PoE-IN, Automotive)DC jack input Voltage12-30 VAutomotive input Voltage12-27 VMax power consumption24 WMax power consumption without attachments12 WPoE inPassive PoECooling typePassivePoE in input Voltage12-30 VMobile3G CategoryR8 (DL: 42.2 Mbps; UL: 5.76 Mbps)3G bands1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
8 (900 MHz)
LTE Category7 (DL: 300 Mbps; UL: 100 Mbps)MIMO DL2x2MIMO UL1x1LTE FDD bands1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
7 (2600 MHz)
8 (900 MHz)
20 (800 MHz)
28 (700 MHz)
32 (1500 MHz)
LTE TDD bands38 (2600 MHz)
40 (2300 MHz)
41 (2500 MHz)
TAC35312597Wireless specificationsWireless 2.4 GHz Max data rate300 Mbit/sWireless 2.4 GHz Number of chains2Wireless 2.4 GHz standards802.11b/g/nAntenna gain dBi for 2.4 GHz2.5Wireless 2.4 GHz chip modelAR9382Wireless 2.4 GHz generationWi-Fi 4Ethernet10/100/1000 Ethernet ports1PeripheralsNumber of SIM slots3 Modem (Mini SIM)MiniPCI-e slots2Serial console portRS232Number of USB ports1USB Power ResetYesUSB slot typeUSB type AMax USB current (A)1OtherPCB temperature monitorYesVoltage MonitorYesGNSS standardsGPSCertification & ApprovalsCertificationCE, EAC, ROHSIP54
