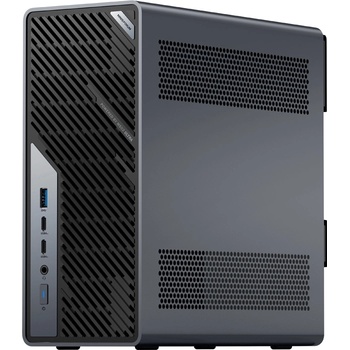

minisforum MS-02U-235HX

MINISFORUM MS-02U-235HX Intel Core Ultra 5 235HX barebone mini PC The MINISFORUM MS-02 Ultra is an advanced mini PC workstation from the Station Mini series that combines impressive performance, extensive upgradeability, and professional networking capabilities in a compact chassis measuring 221.5 × 97 × 225 mm. The device weighs 3.25 kg and is designed for demanding applications such as virtualization, data analysis, large-scale project management, content creation, and supporting advanced IT environments. The barebone version is shipped without RAM or storage, allowing you to select componen

• Brand: MINISFORUM
• Model: MS-02 Ultra 235HX
• Product type: Mini workstation (barebone)
• Processor: Intel Core Ultra 5 235HX
• Number of cores: 14 (6 Performance cores + 8 Efficient cores)
• Number of threads: 14
• Maximum Turbo frequency: Up to 5.1 GHz
• Cache: 24 MB Intel Smart Cache
• Graphics chip: Intel Graphics
• Maximum graphics chip frequency: Up to 1.8 GHz
• AI engine: Intel AI Boost
• AI performance: Up to 13 TOPS
• RAM slots: 4 × DDR5 SO-DIMM
• Maximum RAM capacity: 256 GB
• Maximum RAM speed: 4800 MT/s
• SSD slots: 2 × M. 2 2280 PCIe 4.0 x4 NVMe
• Maximum SSD capacity: Up to 8 TB per slot
• Configuration: Barebone (No RAM, No Drive)
• Wireless connectivity: Wi-Fi 7, Bluetooth 5.4
• Wireless module: Intel BE200
• LAN port 1: 10GbE RJ45 (Realtek RTL8127)
• LAN port 2: 2.5GbE RJ45 (Intel I226-V)
• Front ports: 2 × USB4 V2 Type-C (80 Gbps, DP 2.0 Alt Mode, PD 15 W), 1 × USB 3.2 Gen 2 Type-A, 1 × 3.5 mm audio jack
• Rear ports: 1 × USB4 Type-C, 1 × HDMI 2.1 FRL, 1 × OCuLink, 1 × 10GbE RJ45, 1 × 2.5GbE RJ45, 3 × USB 3.2 Gen 2 Type-A
• Internal connectors: PCIe 5.0 x16 (supports bifurcation), PCIe 4.0 x16, PCIe 4.0 x4
• Operating system: Supports Windows 11 Pro
• Power supply: 1U 350 W MAX, AC 100–240 V
• Cooling system: Heat sink with six heat pipes and phase-change material (PCM)
• Fans: 1 × 70 × 25 mm, 1 × 60 × 20 mm
• Maximum fan speed: Up to 5000 RPM
• Dimensions: 221.5 × 97 × 225 mm
• Weight: 3.25 kg
