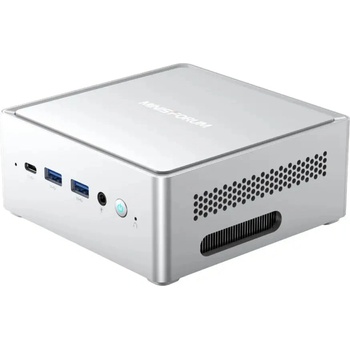

minisforum NAB6 Lite Barebone

Mini PC Minis Forum NAB6 Lite Intel Core i5-12600H, barebone The MinisForum NAB6 Lite is a compact barebone PC designed for users who want to choose their own components without compromising on performance. Inside it runs an Intel® Core i5-12600H processor with 12 cores and 16 threads, reaching up to 4.5 GHz. This configuration provides plenty of computing power for office, engineering, programming or multimedia applications. The integrated Intel® Iris® Xe graphics chip supports 4K resolution video, and two SODIMM slots support up to 64 GB of DDR4 memory. The device also offers an M. 2 PCIe 4.

• Manufacturer: Minis Forum
• Model: NAB6 Lite (barebone version)
• Processor: Intel® Core i5-12600H, 12 cores / 16 threads Cache memory: 18 MB Clock frequency: up to 4.50 GHz
• Graphics chip: Integrated Intel® Iris® Xe Graphics
• Memory: SODIMM × 2 slots, support up to 64 GB - self-installable memory
• Storage: M. 2 2280 PCIe 4.0 SSD (up to 2 TB) - self-installable drive
• Expandable: SATA 3.0 (6.0 Gbps) - 1 slot for 2.5″ HDD
• Wireless connectivity: M. 2 2230 slot with Wi-Fi and Bluetooth support - self-installable module
• Video outputs: HDMI (4K @ 60 Hz) × 2 USB-C (4K @ 60 Hz) × 2
• Audio outputs: HDMI × 2 3.5 mm (Combo Jack) × 1
• Ports and interfaces: RJ45 2.5 Gigabit Ethernet × 2 USB 3.2 Gen 1 USB-C × 1 (data only, front) USB 3.2 USB-C × 1 (DisplayPort only) USB 3.2 USB-C × 1 (Alt DP + data + PD Out) USB 3.2 Gen 2 USB-A × 4 HDMI × 2 DMIC × 1 3.5 mm Combo × 1 Clear CMOS button × 1
• Power supply: DC 19 V power adapter (included)
• Operating system: No pre-installed system
