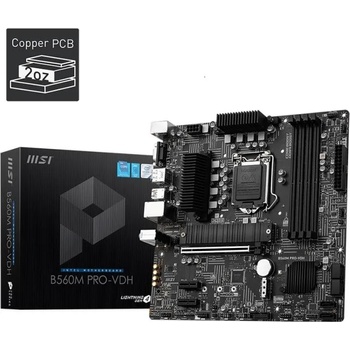

MSI B560M PRO-VDH
MSI B560M PRO-VDH PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series...
Този продукт вече не се предлага от нито един електронен магазин.
Описание на продукта
MSI B560M PRO-VDH PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series...
Параметри на продукта
Параметри на продукта
Описание на продукта
MSI B560M PRO-VDH
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
M. 2 SHIELD FROZR
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M. 2 SHIELD FROZR is the next generation M. 2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
A HUGE STEP OF DDR PERFORMANCE
MSI OC LAB does not merely work hard on extreme overclocking. Compare to B460 motherboard memory XMP profile, MSI does have great improvement on performance and efficiency for B560. Easy to enable XMP profile with auto power settings to get the best memory speed and stability.
CPU
Supports 10th Gen Intel® Core Processors, 11th Gen Intel® Core Processors, Pentium® Gold and Celeron® Processors1
Processor socket LGA1200
Please go to intel. com for compatibility information
CHIPSET
Intel® B560 chipset
MEMORY
4x DDR4 memory slots, support up to 128GB1
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5066 MHz
1DPC 2R Max speed up to 4600+ MHz
2DPC 1R Max speed up to 4266+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Please refer www. msi. com for more information on compatible memory.
See supported memory
EXPANSION SLOT
1x PCIe x16 slot (From CPU)
PCI_E1 (From CPU)
Support up to PCIe 4.0 for 11th Gen Intel® CPU
Support up to PCIe 3.0 for 10th Gen Intel® CPU
2x PCIe 3.0 x1 slots (From B560 chpiset)
ONBOARD GRAPHICS
1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz12
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz12
1x VGA port, supports the maximum resolutions of 2048x1536 @50Hz, 2048x1280 @60Hz and 1920x1200 @60Hz12
Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
AUDIORealtek® AL897 Codec
7.1-Channel High Definition Audio
LAN1x Realtek® 8125B 2.5Gbps LAN controller
STORAGE
6x SATA 6Gb/s ports (From B560 chipset)
2x M. 2 slot (Key M)
M2_1 slot
Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU)
Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset)1
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot2 (from B560 chipset)
Supports up to PCIe 3.0 x4
Supports 2242/ 2260/ 2280 storage devices
Intel® Optane Memory Ready1
Supports Intel® Smart Response Technology for Intel Core processors
SATA2 will be unavailable when installing M. 2 SATA SSD in the M2_1 slot. Before using Intel® Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
USB
Intel® B560 Chipset
2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
2x USB 2.0 Type-A ports on the back panel
USB Hubs GL850G
4x USB 2.0 ports are available through the internal USB 2.0 connectors
FORM FACTOR
Miro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
BIOS FEATURES
1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.2, SMBIOS 3.0
Multi-language
INTERNAL CONNECTORS
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M. 2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
2x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x Serial port connector
1x Tuning Controller Connector
LED FEATURE
1x 4-pin RGB LED connector
1x 3-pin RAINBOW LED connector
4x EZ Debug LED
BACK PANEL CONNECTORS
Keyboard / Mouse
VGA
DisplayPort
USB 3.2 Gen 2 10Gbps Type-A
LAN port
Audio connector
USB 2.0
HDMI
USB 3.2 Gen 1 5Gbps Type-A
