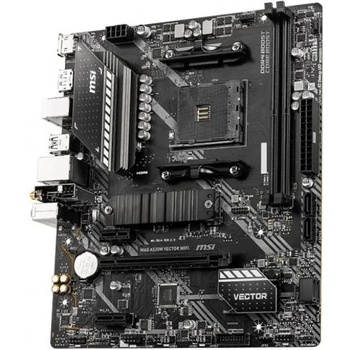

MSI MAG A520M VECTOR WIFI

Graphics: 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1 2; 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1; Maximum shared memory of 16GB
CPU's supported: Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
Chipset: AMD A520 Chipset
Expansion Slots: 1x PCIe x16 slot (PCI_E2) 1; 2x PCIe 3.0 x1 slots
Storage: AMD A520 Chipset; 4x SATA 6Gb/s ports; 1x M. 2 slots (Key M); M2_1 slot (from AMD processor); Supports PCIe 3.0 x4 1; Supports SATA 6Gb/s; Supports 2242/ 2260/ 2280 storage devices
Memory type: 2x DDR4 memory slots, support up to 64GB 1; Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE; 1DPC 1R max speed 4600 MHz; 1DPC 2R max speed 3866 MHz; Dual channel memory architecture; Supports non-ECC UDIMM memory; Supports ECC UDIMM memory (non-ECC mode); Supports un-buffered memory
I/O: Keyboard / Mouse; LAN port; Wi-Fi Antenna connectors; Audio Connectors; HDMI; DisplayPort; USB 2.0 Ports; USB 3.2 Gen 1 5Gbps Type-A; USB 3.2 Gen 1 5Gbps Type-A
Connectors: 1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 4x SATA 6Gb/s connectors; 1x Serial port connector; 1x M. 2 slot (M-Key); 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin system fan connector; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1x 4-pin RGB LED connector; 1x 3-pin RAINBOW LED connector; 1x TPM module connector; 1x Clear CMOS jumper
Audio: Realtek® ALC892/ALC897 Codec; 7.1-Channel High Definition Audio
LAN: 1x Realtek® RTL8111H LAN controller
Form Factor: M-ATX Form Factor; 9.6 in. x 8.3 in. (24.4 cm x 21 cm)
Other: Intel® Dual Band Wireless-AC 3168; Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed. ; Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2
Warranty: 36 Months



.
