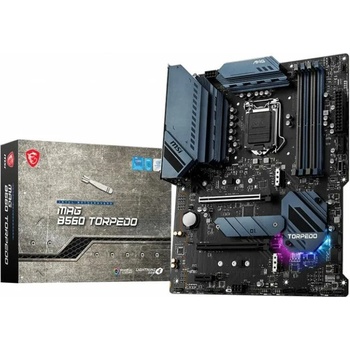

MSI MAG B560 TORPEDO

Доставка на този тип поръчки.

Продукта се поръчва специално за клиента , след извършено от него плащане по банка, с карта или в брой в магазина.

Срока за доставка е 6-9 дни след получено плащане на поръчката.

"Заплащане при доставка", за този продукт, не е възможна!

Допълнителни снимки на продукта:

Снимка 1 Снимка 2 Снимка 3
MAG B560 TORPEDO

Graphics: 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz12; 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz12
CPU's supported: Supports 10th Gen Intel® Core Processors, 11th Gen Intel® Core Processors, Pentium® Gold and Celeron® Processors1; Processor socket LGA1200
Chipset: Intel® B560 Chipset
Expansion Slots: 2x PCIe x16 slots; PCI_E1 (from CPU); Support up to PCIe 4.0 for 11th Gen Intel® CPU; Support up to PCIe 3.0 for 10th Gen Intel® CPU; PCI_E2 (from B560 chipset); Support up to PCIe 3.0 x4; 1x PCIe 3.0 x1 slot (from B560 chipset)
Storage: 6x SATA 6Gb/s ports (from B560 chipset); 3x M. 2 slots (Key M); M2_1 slot (from CPU); Available only on 11th Gen Intel® CPU; Supports up to PCIe 4.0 x4; Supports 2242/ 2260/ 2280/ 22110 storage devices; M2_21 slot (from B560 chipset); Supports up to PCIe 3.0 x4; Supports SATA up to 6Gb/s; Supports 2242/ 2260/ 2280 storage devices; M2_3 slot (from B560 chipset); Supports up to PCIe 3.0 x4; Supports 2242/ 2260/ 2280 storage devices; Intel® Optane Memory Ready 2; Supports Intel® Smart Response Technology for Intel Core processors
Memory type: 4x DDR4 memory slots, support up to 128GB 1; Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR); Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR); Max overclocking frequency: 1DPC 1R Max speed up to 5066 MHz; 1DPC 2R Max speed up to 4600+ MHz; 2DPC 1R Max speed up to 4266+ MHz; 2DPC 2R Max speed up to 4000+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile (XMP)
I/O: USB 2.0; DisplayPort; 2.5G LAN Port; Gigabit LAN Port; HD Audio Connectors; HDMI; USB 3.2 Gen 1 5Gbps Type-A; USB 3.2 Gen 2x2 20Gbps Type-C; Optical S/PDIF OUT
Connectors: 1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 1x 4-pin ATX 12V power connector; 6x SATA 6Gb/s connectors; 3x M. 2 slots (M-Key); 1x USB 3.2 Gen 2 10Gbps Type-C port; 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 5x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1x Clear CMOS jumper; 1x TPM module connector; 1x TBT connector (supports RTD3); 1x Tuning Controller connector
Audio: Realtek® ALC897 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output
LAN: 1x Realtek® RTL8125B 2.5Gbps LAN controller; 1x Intel® I219V 1Gbps LAN controller
Form Factor: ATX Form Factor; 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
OS: Support for Windows® 10 64-bit
Warranty: 36 Months



.
