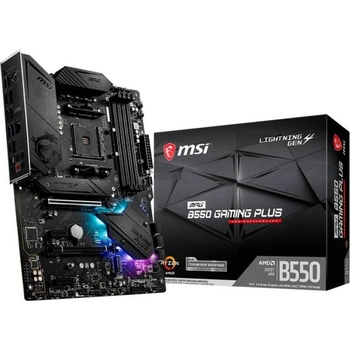

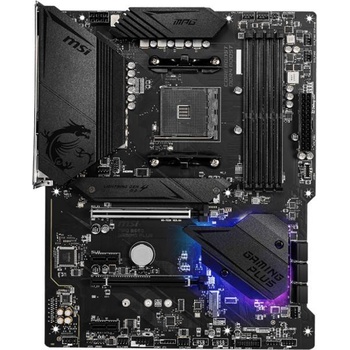

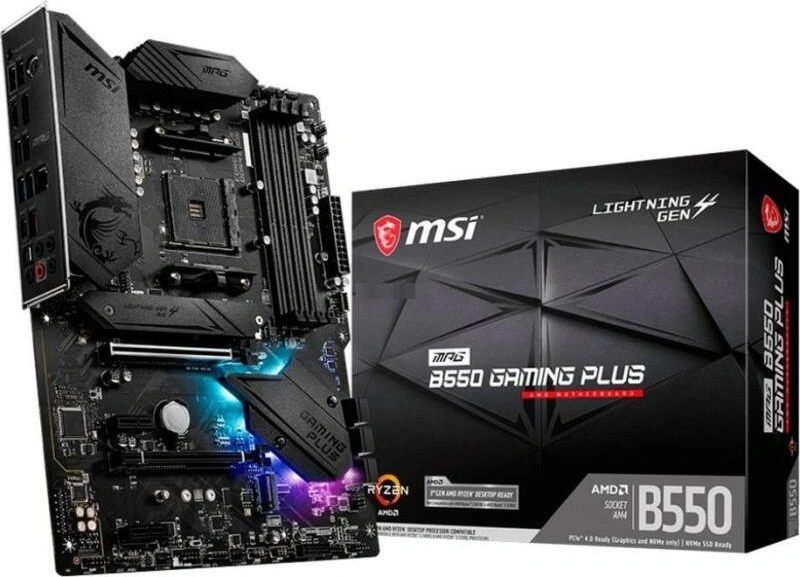

MSI MPG B550 GAMING PLUS

MSI MPG B550 GAMING PLUS AM4 DDR4 2xM. 2 6xSATA HDMI DP ATX MBMSI MPG B550 GAMING PLUS AM4 DDR4 2xM. 2 6xSATA HDMI DP ATX MB:Manufacturer : MSIManufacturer Part No : MPG B550 GAMING PLUSMarketing DescriptionThe MPG series brings out the advanced performance for gamers by allowing full expression in color with advanced RGB lighting control and synchronization. Experiment on another level of personalization with a front LED strip that provides convenient in-game and real-time notifications. With the MPG series, transform your equipment into the center of attention. Product Features

• Enhanced performance
  High-performance motherboards are loaded with advanced features and advanced technologies to overwhelm any challenge at hand no matter whether you're a gamer, prosumer, or PC enthusiast.
• Extended heatsink design
  MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
• Thickened copper PCB
  An enhanced PCB design improves heat dissipation and performance reliability.
• Advanced lightning solution
  The advanced solution with high-capacity bandwidth for maximum transfer speed.
• Flash BIOS button
  Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.
• Front Type-C USB 3.2
  Compatible with an advanced PC chassis and perfect for external drives and other mobile devices.
• M. 2 shield FROZR
  Strengthened built-in M. 2 thermal solution keeps M. 2 SSDs safe while preventing throttling, making them run faster.
• Optimized for water cooling
  Designed to support the most popular all-in-one water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked "keep-out-zone" allows for easy and safe installation and a perfect fit.
• Fully controllable in BIOS and software
  MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

GeneralProduct Type : Motherboard - ATXChipset Type : AMD B550 / Nuvoton NCT6687Processor Socket : Socket AM4Max Processors Qty : 1Compatible Processors : Ryzen (supports 3rd Generation Ryzen and New Generation Ryzen with Radeon Graphics)Supported RAMMax Size : 128 GBTechnology : DDR4Bus Clock : 2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3466 MHz (O. C. ), 3733 MHz (O. C. ), 3600 MHz (O. C. ), 3866 MHz (O. C. ), 4000 MHz (O. C. ), 4133 MHz (O. C. ), 4400 MHz (O. C. ), 4266 MHz (O. C. ), 3200 MHz, 3066 MHzSupported RAM Integrity Check : Non-ECC, ECC (operate in non-ECC mode)Registered or Buffered : UnbufferedFeatures : Dual channel memory architecture, supported ECC modules operate in non-ECC mode, A-XMP supportAudioType : HD Audio (8-channel)Audio Codec : Realtek ALC892Compliant Standards : High Definition AudioLANNetwork Controller : Realtek RTL8111HNetwork Interfaces : Gigabit EthernetExpansion / ConnectivityExpansion Slots : 1 x CPU
4 x DIMM 288-pin
1 x PCIe 4.0 x16
1 x PCIe 3.0 x16 (x4 mode)
2 x PCIe 3.0 x1Storage Interfaces : SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10
SATA-600 / PCIe 4.0 -connectors: 1 x M. 2 - RAID 0 / RAID 1
PCIe 3.0 -connectors: 1 x M. 2 - RAID 0 / RAID 1Interfaces : 1 x LAN (Gigabit Ethernet)
1 x audio line-in - mini-jack
1 x audio line-out - mini-jack
1 x microphone - mini-jack
1 x TOSLINK
2 x USB 3.2 Gen 1
1 x USB 3.2 Gen 2
1 x audio line-out (center/subwoofer) - mini-jack
1 x audio line-out (rear) - mini-jack
1 x USB-C Gen2
1 x PS/2 keyboard / mouse
4 x USB 2.0
1 x HDMI
1 x DisplayPortInternal Interfaces : 4 x USB 2.0 - header
2 x USB 3.2 Gen 1 - header
1 x USB-C Gen 1 - header
1 x audio - headerPower Connectors : 24-pin main power connector, 8-pin ATX12V connectorFeaturesHardware Monitoring : CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometerHardware Features : AMD CrossFireX technology support, MSI Audio Boost, Debug LED, MSI Mystic Light, M. 2 Shield FROZR, pre-mounted I/O shield, MSI Core Boost, MSI PCIe Steel SlotMiscellaneousIncluded Accessories : Case badgeCables Included : 2 x Serial ATA cableSoftware Included : Drivers & UtilitiesWidth : 30.5 cmDepth : 24.4 cmTechnical data provided by third party. We assume no liability for errors within these data.
