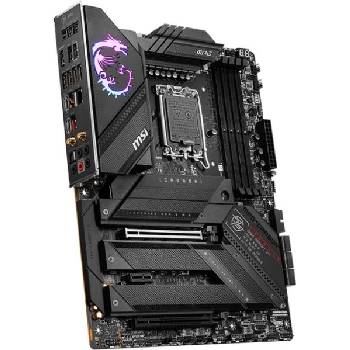

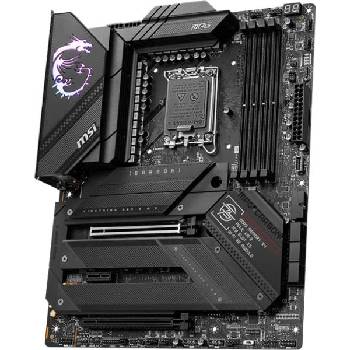

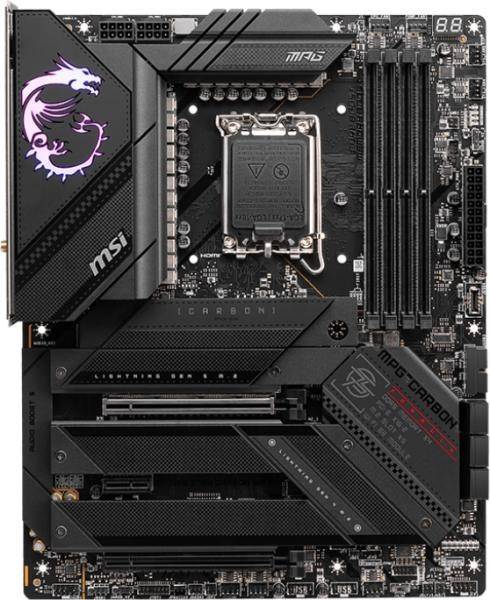

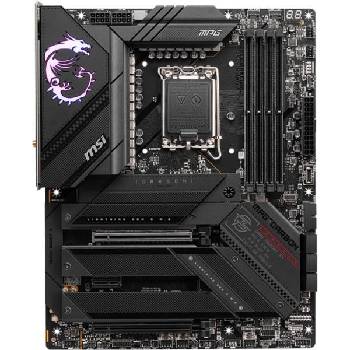

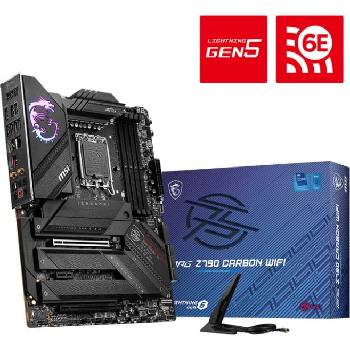

MSI MPG Z790 Carbon WIFI

DescriptionMPG Z790 CARBON WIFI MPG Z790 CARBON WIFI series motherboards use the unique Carbon Black color scheme and RGB backlighting. Thanks to this, the user can express his personality, adjust the lighting to the game or change his mood. In addition to being stylish, these motherboards are also incredibly powerful. The MPG series brings out what is fashionable from the equipment, emphasizes unusual, unique design and expresses a defiant attitude towards the challenges of the gaming world. With incredible performance and style, the MPG series defines the future of gaming fashion.

• Support for 13th / 12th generation Intel Core / Pentium / Celeron processors in the LGA 1700 socket
• DDR5 memory support up to 7600+ MHz (overclocking)
• Outstanding gaming speed: PCIe 5.0 and Lightning Gen 5 x4 M. 2, USB 3.2 Gen 2x2
• Improved Rugged Power Design: Direct 19+1+1 Phase Power Design, Core Boost and Memory Boost
• Premium Cooling System: Oversized heatsink system with integrated heat pipe, 7W/mK high conductivity MOSFET thermal pads, additional choke thermal pads, and M. 2 Shield Frozr compatible heatsink for M. 2 solid state drives increase system performance and allow for uninterrupted hours of gameplay.
• 2.5G LAN and Intel Wi-Fi 6E: Enhanced networking solution for multimedia and professional use. It provides a secure, stable and fast network connection.
• AUDIO BOOST 5 sound system: Produces studio-quality sound for an immersive gaming experience.
• Premium PCB: 8-layer PCB made of server-grade materials
• Pre-assembled I/O connector covers: Improved EMI protection and greater installation convenience

Model:MPG Z790 CARBON WIFICPU socket:LGA1700Processor family:Intel Core i5
Intel Core i7
Intel Core i3
Intel Celeron
Intel Pentium Gold
Intel Core i9Integrated CPU:NoChipset manufacturer:IntelChipset type:INTEL Z790Memory type:DDR5Number of DDR5 slots:4Memory bus frequency:4800 MHz
5000 MHz
5800 MHz
5200 MHz
5400 MHz
5600 MHz
6200 MHz
6000 MHz
6400 MHz
6600 MHz
6800 MHz
7000 MHz
7200 MHz
7400 MHz
7600 MHzMax memory size:192 GBExpansion slots:1 x PCIe 5.0 x 16
1 x PCIe 3.0 x 1
1 x PCIe 4.0 x 4Max. number of SATA devices:6RAID:YesDetailed data on disk/drive interfaces:5 x M. 2:

• M. 2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• M. 2_2 (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices
• M. 2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• M. 2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• M. 2_5 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices

6 x SATA 6GGraphics:1 x HDMI - Supports HDMI 2.1 with HDR, max resolution 4K 60Hz* *Available only on processors with integrated graphics. Graphics specifications may vary depending on the installed processor. Sound card:

• Realtek ALC4080 Codec
• 7.1-Channel USB High Performance Audio
• Supports playback up to 32-bit/384 kHz on the front panel

Network interface:Bluetooth
1 x 10/100/1000/2500 Mbit/s
Wi-Fi 802.11a/b/g/n/ac/axNetwork interface:LAN: Intel 2.5Gbps LAN Wireless communication:

• Intel WiFi 6E
• The wireless module is pre-installed in the M. 2 (Key-E) slot.
• Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz (160MHz) up to 2.4Gbps
• Supports 802.11 a/b/g/n/ac/ax
• Supports Bluetooth 5.3, FIPS, FISMA

USB ports at back panel:10USB ports on motherboard:7Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports:4Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports:9FireWire (IEEE 1394):NoCOM connector / port:NoLPT connector / port:NoExternal connectors:2 x USB 3.1 Type-C
1 x HDMI
1 x Central Speaker / Subwoofer
1 x Rear Speaker
1 x Line In
1 x Line Out
1 x MIC
1 x RJ-45
1 x S/PDIF
2 x USB 3.0
6 x USB 3.1
1 x Przycisk Clear CMOS
2 x SMA
1 x Smart ButtonOnboard connectors:1 x 4pin CPU/Water Pump Fan Connector
2 x Addressable LED
1 x Chassis intrusion header
1 x RGB LED strip header
2 x System panel header
1 x Front panel audio header
2 x 8pin 12V
1 x 24pin ATX zasilanie
5 x M. 2
6 x SATA III 6Gb/s
4 x USB 2.0/1.1
2 x USB 3.0 header
1 x USB C
1 x TPM header
5 x 4pin Chassis fan
1 x 4pin CPU fanForm factor:ATXDimensions:243.84 x 304.8 mm
