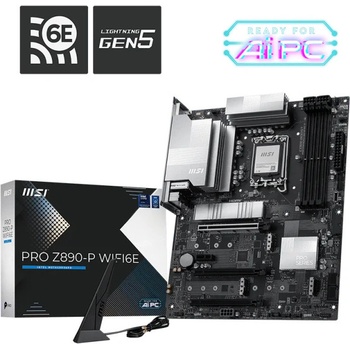

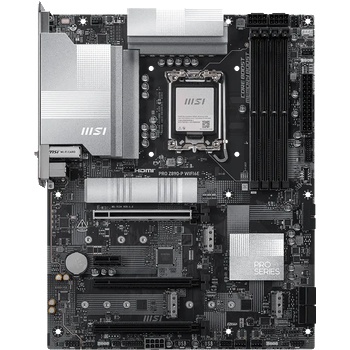

MSI PRO Z890-P WIFI6E

Chipset
INTEL Z890

CPU
Supports Intel® Core Ultra Processors (Series 2)LGA 1851

Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GBMemory Support DDR5 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/sMax. overclocking frequency: 1DPC 1R Max speed up to 9200+ MT/s 1DPC 2R Max speed up to 7200+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 5600+ MT/sSupports Intel® POR Speed and JEDEC SpeedSupports Memory Overclocking and Intel® XMP 3.0Supports Dual-Controller Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM The DIMM slots on this motherboard only have single-sided latches. Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www. msi. com/support/.

Onboard Graphics
1x HDMISupport HDMI 2.1, maximum resolution of 4K 60Hz*1x DisplayPortSupport DisplayPort 1.4, maximum resolution of 4K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot
3x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)

Audio
Realtek® ALC897 Codec7.1-Channel High Definition Audio

Storage
4x M. 2M. 2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devicesM. 2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devicesM. 2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devicesM. 2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices4x SATA 6G*Please refer to the manual for M. 2 SSD heatsink restrictions.

RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesSupports RAID 0, RAID 1, RAID 5 and RAID 10 for M. 2 NVMe storage devices

USB
4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 5Gbps Type A (Rear)4x USB 5Gbps Type A (Front)1x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Rear)1x USB 20Gbps Type C (Front)

LAN
Realtek® 8126 5Gbps LAN

Internal IO
1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x Power Connector(PCIE_PWR 8pin)1x CPU Fan1x Combo Fan (Pump_Sys Fan)5x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Tuning Controller connector(JDASH)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports4x USB 5Gbps Type A ports1x USB 20Gbps Type C ports

WIRELESS LAN & BLUETOOTH
Wi-Fi 6E moduleThe Wireless module is pre-installed in the M. 2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3**, FIPS, FISMA* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

LED FEATURE
4x EZ Debug LED

BACK PANEL PORTS
DisplayPortMouse / KeyboardUSB 2.05G LANWi-Fi / BluetoothAudio ConnectorsFlash BIOS ButtonHDMIUSB 2.0USB 5Gbps Type-AUSB 10Gbps Type-CUSB 10Gbps Type-A

OPERATING SYSTEM
Support for Windows® 11 64-bit

BOX CONTENT


PCB Info
ATX243.84mmx304.8mm
