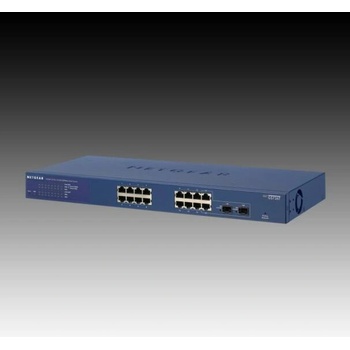

NETGEAR GS716T-200EUS

Designed for SMB Customers with High Performance and Easy Management

NETGEAR’s family of Prosafe Gigabit Smart Switches is purposely designed for SMB customers with high performance, SMB-oriented features and easy management. With 16 or 24 10/100/1000 Mbps ports, each capable of powering 2000 Mbps of data throughput in full-duplex mode per port, plus two shared SFP ports, the GS716T-200 and GS724T-300 will enable SMB networks to support Voice over IP (VoIP), streaming media, multicasting, security, and many other bandwidth-intensive applications like ERP and large file transfers.

The GS716T-200 and GS724T-300 come with a comprehensive set of features, such as access control lists (ACL), 802.1x port authentication, enhanced QoS, rate limiting and IGMP snooping among others to provide a small and medium-sized business with a network that is geared for growth while ensuring performance and reliability.

In addition, an intuitive, Web-browser interface offers the simple Smart Switch management, making it a snap to monitor switch performance, configure ports, even set up port trunks, VLANs, and traffic prioritization. Alternatively, use SNMP-based software to manage your Smart Switch. Shipped ready for use straight out of the box, it delivers switching that’s easy to set up and use. NETGEAR ProSafe Smart Switches are ideal for adding basic management to your unmanaged networks or extending your managed networks.

NETGEAR GreenNetgear Green Logo 101pixels X 89 pixels

    Up to 70% power savings compared to the non-Green version
    Auto power-down mode saves energy when port is unused
    Cable length detection reduces power usage when network cable is shorter than 10 meters.

Intelligent
Smart Switch capability enables key management features for the value price of an unmanaged switch. Included are performance monitoring, port configuration, VLAN for traffic control, port trunking for increased bandwidth, and Class of Service (CoS) for traffic prioritization.

Enhanced Security
These Gigabit Smart Switches provide advanced features that provide more robust security to the SMBs. These include:

    802.1x for authentication
    ACL filtering to permit or deny traffic based on MAC or IP addresses.

Advanced Quality of Service (QoS)
Priority queuing ensures high-priority traffic gets delivered efficiently, even during congestion from high-traffic bursts. Companies implementing network telephony or video conferencing, for example, need to be able to prioritize such voice and video traffic and other real-time applications over less latency-sensitive traffic to ensure reliability and quality. The ability to prioritize traffic ensures quality of latency-sensitive services and applications despite increasing traffic loads. The ProSafe Gigabit Smart Switch provides an extensive set of QoS features:

    802.1p-based prioritization
    Layer 3-based prioritization
    Rate-limiting

Easy-going and Durable
Simple to set up and simple to use for effortless network monitoring and troubleshooting. Made to last, this sturdy switch is housed in a 17-inch metal box and comes with a rack-mounting kit

**Use with NETGEAR ProSafe AGM731F 1000BASE-SX SFP GBIC module, ProSafe AGM732F 1000BASE-LX SFP GBIC module or ProSafe AGM733 1000BASE-ZX SFP GBIC.

Network Protocol and Standards Compatibility

    IEEE 802.3 10BASE-T Ethernet
    IEEE 802.3u 100BASE-TX Fast Ethernet
    IEEE 802.3ab 1000BASE-T Gigabit Ethernet
    IEEE 802.3x full-duplex flow control

Interfaces

    GS724T: 24 RJ-45 connectors for 10BASE-T, 100BASE-TX, and 1000BASE-T (Auto Uplink on all ports)
    GS716t: 16 RJ-45 connectors for 10BASE-T, 100BASE-TX and 1000BASE-T (Auto Uplink on all ports)
    2 Dual Personality SFP slots for fiber Gigabit Ethernet modules

Administrative Switch Management

    IEEE 802.1D Spanning Tree Protocol
    IEEE 802.1W Rapid Spanning Tree Protocol
    IEEE 802.1S Multiple Spanning Tree Protocol
    Auto-voice VLAN*
    SNMPv1, v2c, v3
    RFC 1213 MIB II
    RFC 1643 Ethernet Interface MIB
    RFC1493 Bridge MIB
    Jumbo Frame Support (up to 9KB)
    IEEE 802.1Q Tag VLAN
    GS716T: 128 Static VLANs
    GS724T: 128 Static VLANs
    IEEE 802.1p (Class of Service)
    DSCP - L3 QoS
    Port-based ingress/egress rate limiting
    IEEE 802.3ad static or dynamic link aggregration (LACP)
    DHCP client function
    Broadcast storm control
    Port mirroring (many-to-one)
    Port setting
    Green features: Power saving by cable length (
