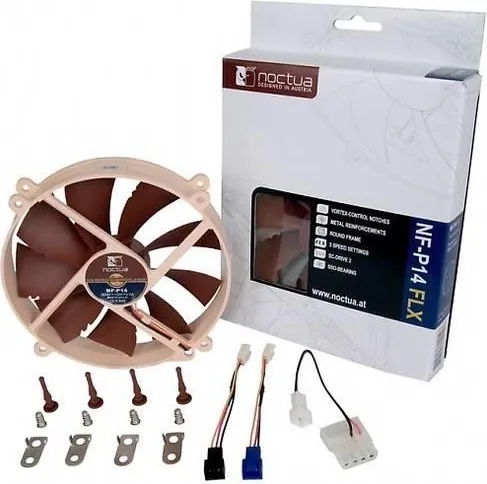

Noctua NF-P14 FLX

- висок клас вентилатор 140x140x25мм, 1200(с опция с адаптор за намаляване до 900/750) оборота в минута, с гумички против вибрации
Модел: NF-P14 FLX

Гаранция: 72 месеца
Тегло: 0.28 кг

Following in the footsteps of the successful NF-P12 , the NF-P14 is a highly optimised, premium quality 140mm fan with Vortex-Control Notches for superb quietness and outstanding aerodynamic efficiency. Metal reinforcements , SCD2 technology and Noctua’s premium grade SSO-Bearing guarantee exceptional running smoothness and excellent long-term stability. Using the same hole-spacing as common 120mm fans and achieving a superior airflow/noise ratio, the NF-P14 is ideal for upgrading 120mm CPU or case fans.



Specifications



Size140x140x25 mmBearing SSO-Bearing Blade Geometry NF-P14 Blade Design with VCN Rotational Speed (+/- 10%)1200 RPMRotational Speed with L. N. A. (+/- 10%)900 RPMRotational Speed with U. L. N. A. (+/- 10%)750 RPMAirflow110,3 m³/hAirflow with L. N. A. 83,7 m³/hAirflow with U. L. N. A. 71,2 m³/hAcoustical Noise19,6 dB(A)Acoustical Noise with L. N. A. 13,2 dB(A)Acoustical Noise with U. L. N. A. 10,1 dB(A)Static Pressure1,29 mm H 2 OStatic Pressure with L. N. A. 0,77 mm H 2 OStatic Pressure with U. L. N. A. 0,53 mm H 2 OInput Power1,2 WInput Current0,1 AVoltage Range12 VMTBF> 150.000 hScope of Delivery

• Ultra-Low-Noise Adaptor (U. L. N. A. )
• Low-Noise Adaptor (L. N. A. )
• Adaptors for 140mm mounting
• 4 Vibration Compensators
• 3:4-Pin Adaptor
• 4 Fan Screws

Warranty6 years





Details

140mm Impeller with Vortex Control Notches
Thanks to its psycho-acoustically optimised nine blade impeller with staggered Vortex-Control Notches, the NF-P14 combines superb quietness with exceptional airflow and static pressure.

Metal Reinforcements
Both the impeller hub and the bearing shell of the NF-P14 are metal reinforced in order to achieve ultimate manufacturing precision, high durability and vibration-free running.

Round frame with 120mm mounting holes
Using a round frame with the same hole-spacing as common 120mm fans and producing more airflow due to its larger diameter, the NF-P14 is a perfect upgrade for 120mm CPU or case fans. Thanks to the supplied adaptors, the NF-P14 also fits common 140mm mounting holes.

3 speed settings for full flexibility
Providing 1200, 900 and 750 rpm speed settings via the supplied Low-Noise and Ultra-Low-Noise Adapters, the NF-P14 FLX (Flexibility) can be fine-tuned for superior airflow or maximum quietness.

Smooth Commutation Drive 2
DThe latest version of Noctua’s advanced SCD drive system ensures superb running smoothness by eliminating torque variations and switching noises.

SSO-Bearing
Noctua’s time-tested SSO-Bearing technology has become synonymous with supremely quiet operation and exceptional long-term stability.
