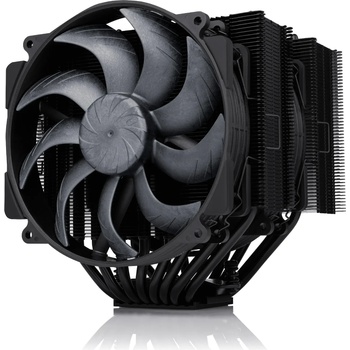

Noctua NH-D15 G2 CH (NH-D15.G2.CH.BK)

Noctua NH-D15 G2

The NH-D15 G2 is the further improved second generation of Noctua’s iconic NH-D15. With its state-of-the-art, speed-offset NF-A14x25r G2 PWM fans, eight heatpipes and asymmetrical fin-stacks that have been carefully fine-tuned to work in tandem with the new fans, it achieves even better quiet cooling performance than its award-winning predecessor. As such, the G2 version is a true flagship model that continues the legacy of the original NH-D15 by pushing the boundaries of air cooling and rivalling the efficiency of many all-in-one (AIO) water cooling solutions. In addition to its further improved performance, the NH-D15 G2 also offers enhanced compatibility thanks to an offset construction that allows it to clear the top PCIe x16 slot on most current motherboards. Last but not least, the G2 version has been upgraded to the Torx-based SecuFirm2+ multi-socket mounting system with included NM-SD1 screwdriver as well as to Noctua’s superior NT-H2 thermal compound.

Cooler Specification
Socket compatibility AMD AM5, AM4 and Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150
Height (without fan) 168 mm
Width (without fan) 150 mm
Depth (without fan) 127 mm
Weight (without fan) 1180 g
Height (with fan) 168 mm
Width (with fan) 150 mm
Depth (with fan) 152 mm
Weight (with fan) 1525 g
Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR 228
Fan compatibility 140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25

FAN Specification
Model 2x NF-A14x25r G2 PWM
Bearing SSO2
Max. rotational speed (+/- 10%) 1500 RPM
Max. rotational speed with L. N. A. (+/- 10%) 1250 RPM
Max. airflow 155.6 m³/h
Max. airflow with L. N. A. 127.1 m³/h
Max. acoustical noise 24.8 dB(A)
Max. acoustical noise with L. N. A. 19.7 dB(A)
Blade geometry Progressive-Bend impeller
Acoustical noise 24.8 dB(A)
Input power (max. ) 2.28 W
Voltage range 12 V
MTTF > 150.000 h
